65" · 4K UHD · Android 13
Yealink

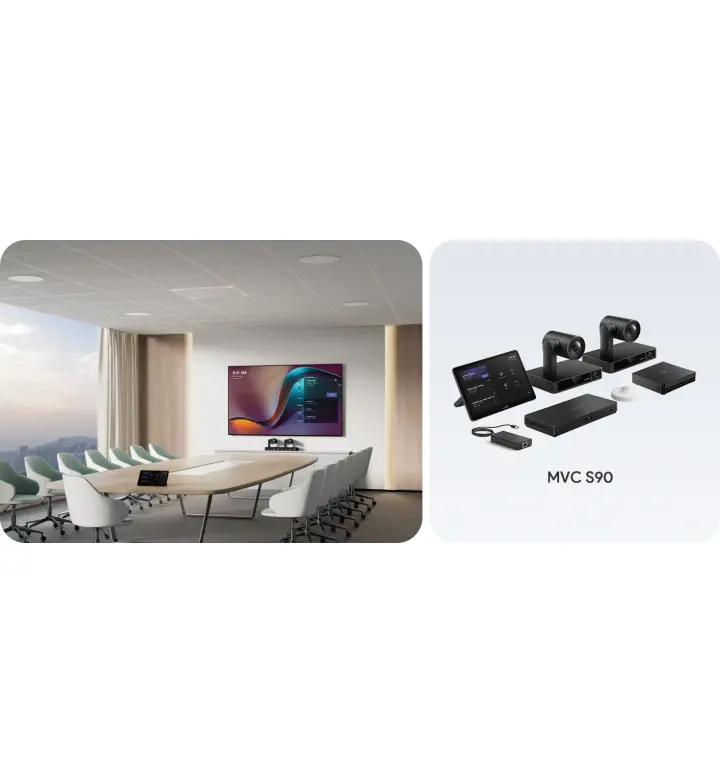

Yealink MVC S90 Microsoft Teams Room Pro, 4K PTZ, Large
SKU MVC S90
Pro AV system with dual 4K PTZ cameras, 120° FOV, speaker tracking, voice/facial recognition, and immersive Together Mode.
- RAM
- 8 GB (2 × 4 GB)
- Storage
- 128 GB SSD
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Built-in system
- Storage
- 128 GB SSD
- Processor
- 11th Gen Intel Core i5 (MCore Pro mini-PC)
- RAM
- 8 GB (2 × 4 GB)
Ports and connections
- Bluetooth
- Bluetooth 5.2
- HDMI Output
- HDMI Out × 3 (CEC) on MCore Pro
- USB Ports
- USB 3.0 Type-A × 4 (MCore Pro)
- Audio in
- AVHub: 6.3 mm line in × 1, RCA in/out × 1, 7 × Yealink VCH (RJ-45)
Description
The Yealink MVC S90 is a professional audio-visual system for large Microsoft Teams meeting spaces and modular collaboration rooms. It combines dual UVC86 4K USB PTZ cameras with 120-degree field of view, MCore Pro Gen-3 mini-PC, MTouch Plus Gen-3 touch panel, and AVHub audio/video processor. The system supports up to 9 camera presets and flexible room layout configuration.
AI capabilities include auto framing, speaker tracking, presenter tracking, multi-focus, picture-in-picture, voice and facial recognition, and gesture control. PTZ cameras deliver 12× optical zoom for detailed remote visibility. The system integrates third-party audio devices (Biamp, Nureva, Shure, YAMAHA) and wireless microphones (VCM36-W Wi-Fi, CPW65 DECT).
Ideal for: Large corporate boardrooms, training facilities, and multi-room collaboration spaces requiring advanced AI video conferencing and third-party audio integration.
- Dual 4K UHD PTZ cameras, 120° field of view, 12× optical zoom, 1.7× digital zoom
- AI features: auto framing, speaker tracking, presenter tracking, multi-focus, picture-in-picture, facial recognition, gesture control
- MCore Pro Gen-3 mini-PC, MTouch Plus Gen-3 panel, AVHub processor, RoomSensor
- Up to 9 camera presets and flexible room configuration
- Wireless microphone support: VCM36-W Wi-Fi, CPW65 DECT
- Third-party audio integration: Biamp, Nureva, Shure, YAMAHA
Specifications
Manufacturer specifications · confirmed on your quotation
System
- Operating System
- Windows 10 IoT Enterprise x64 (Windows 11 IoT Enterprise supported from 23H2)
- Processor
- 11th Gen Intel Core i5 (MCore Pro mini-PC)
- RAM
- 8 GB (2 × 4 GB)
- Storage
- 128 GB SSD
- AI features
- Auto framing, speaker tracking, presenter tracking (area trigger, gesture control), multi-focus, picture-in-picture
Connectivity
- HDMI Output
- HDMI Out × 3 (CEC) on MCore Pro
- USB Ports
- USB 3.0 Type-A × 4 (MCore Pro)
- Audio in
- AVHub: 6.3 mm line in × 1, RCA in/out × 1, 7 × Yealink VCH (RJ-45)
- Audio out
- AVHub: 6.3 mm line out × 1
- Ethernet
- 10/100/1000M Ethernet × 1 (MCore Pro)
- Wi-Fi
- Wi-Fi 6 (802.11a/b/g/n/ac/ax)
- Bluetooth
- Bluetooth 5.2
Camera & audio
- Camera
- UVC86 USB PTZ camera: 4K sensor, dual-eye (telephoto + panoramic), up to 9 presets
- Field Of View
- Telephoto 90° (D) / 81° (H) / 50° (V); Panoramic 120° (D) / 110° (H) / 78° (V)
- Zoom Type
- 20.4× HD zoom (12× optical, 1.7× digital), mechanical PTZ (pan 200°, tilt 130°)
- Microsoft Teams ready
- Yes (Microsoft Teams Rooms on Windows)
Physical & warranty
- Weight
- 12.1 kg (net), 13.8 kg (gross)
- Shipping Dimensions
- 935 × 413 × 312 mm (carton)
- Shipping Weight
- 13.8 kg
Other
- Type
- Microsoft Teams Rooms system for extra-large rooms (dual UVC86)
- Additional Features
- TPM 2.0, Kernel DMA, EDID, integrated cable management (MCore Pro)
- Package Contents
- MCore Pro mini-PC, MTouch Plus touch panel, AVHub, 2 × UVC86 USB PTZ camera, 2 × WPP30 wireless presentation pod, RoomSensor
- More Information
- MTouch Plus: 11.6" IPS 1920 × 1080, screen angle 30°–70°, HDMI/USB-C input, wired/wireless (WPP30) sharing, desktop or wall mount; RoomSensor: 120° detection, battery (4-year life)
