65" · 4K UHD · Android 13
Yealink

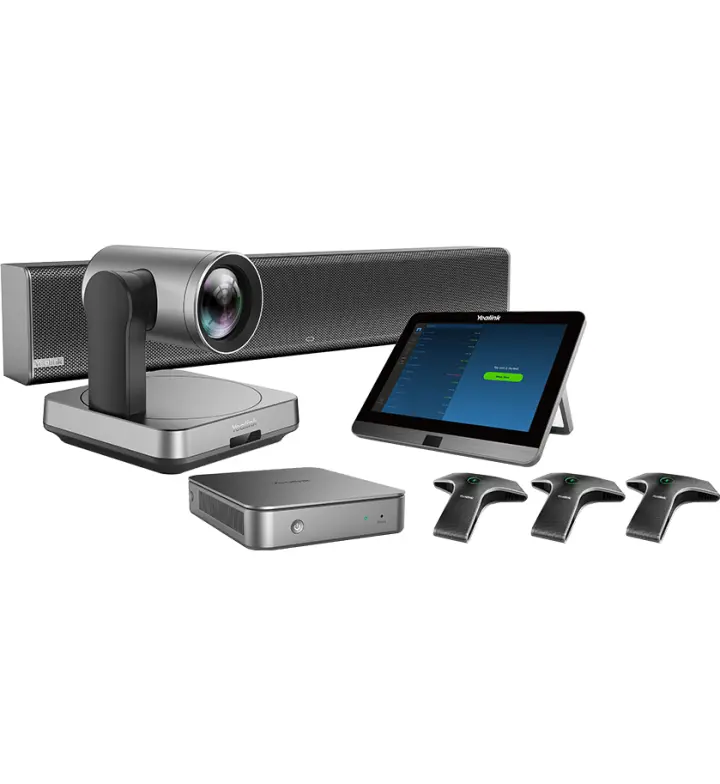

Yealink ZVC840 4K Zoom Rooms System 2nd Generation
SKU ZVC840
Complete Zoom Rooms solution with 4K UHD camera, MCore Mini-PC, touch panel, soundbar and triple microphone array for professional meeting spaces.
- Field Of View
- 80° (diagonal)
- RAM
- 8 GB (2 × 4 GB)
- Storage
- 128 GB SSD
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Built-in system
- Storage
- 128 GB SSD
- Operating System
- Windows 10 IoT Enterprise x64
- Processor
- 8th-gen Intel quad-core i5 (MCore mini-PC)
- RAM
- 8 GB (2 × 4 GB)
Camera and audio
- Field Of View
- 80° (diagonal)
- Camera
- UVC84 USB PTZ camera: 4K, 12× optical zoom, camera presets
- Zoom Type
- 12× optical, mechanical PTZ (pan 200°, tilt 130°)
- Microphone Range
- 6 m (20 ft) voice pickup per VCM34
Description
The ZVC840 is a comprehensive second-generation Zoom Rooms system bringing integrated video conferencing, device management and collaborative control to professional meeting spaces. The system pairs a MCore Mini-PC with the MTouch II touch console and UVC84 USB PTZ camera supporting 4K UHD resolution with 12× optical zoom. The built-in Yealink soundbar and array of three VCM34 microphones, each operating at a 6-metre range, provide full-duplex audio with integrated Yealink Noise Proof technology. The system supports Windows 10 IoT Enterprise, one-touch join capability, human motion sensing and angle-adjustable mounting for flexible deployment.
Ideal for: Executive meeting suites, corporate boardrooms, professional training facilities, large collaboration spaces, integrated Zoom Rooms deployments.
- Camera: 4K UHD resolution with 12× optical zoom
- Field of view: 80°
- Processor: MCore Mini-PC with Windows 10 IoT Enterprise
- Control interface: MTouch II touch panel
- Audio: Yealink soundbar plus 3 × VCM34 microphones (6 m range each)
- Microphone cascade: Supports up to 4 VCM34 units at 6 m range
- Features: Auto-framing, auto-privacy protection, human motion sensor, Yealink Noise Proof
- Connectivity: USB, HDMI, Bluetooth, Wi-Fi, Ethernet, Line-in, Line-out
- Mounting: Wall or table mount with angle-adjustable bracket
- Weight: 10.7 kg (net), 12.0 kg (gross)
- Zoom Rooms certified: Yes
Specifications
Manufacturer specifications · confirmed on your quotation
System
- Operating System
- Windows 10 IoT Enterprise x64
- Processor
- 8th-gen Intel quad-core i5 (MCore mini-PC)
- RAM
- 8 GB (2 × 4 GB)
- Storage
- 128 GB SSD
- AI features
- Auto framing
Connectivity
- HDMI Output
- HDMI Out × 2 (CEC) on MCore
- USB Ports
- USB 3.0 Type-A × 4 (MCore)
- Ethernet
- 10/100/1000M Ethernet × 1 (MCore)
Camera & audio
- Camera
- UVC84 USB PTZ camera: 4K, 12× optical zoom, camera presets
- Field Of View
- 80° (diagonal)
- Zoom Type
- 12× optical, mechanical PTZ (pan 200°, tilt 130°)
- Microphone Range
- 6 m (20 ft) voice pickup per VCM34
- Wireless Microphone Option
- 3 × VCM34 array microphones (3-mic array each, cascade up to 4 units)
- Speaker Type
- Yealink soundbar (100 Hz – 20 kHz, S/N ≥ 70 dB, 3.5 mm line-in)
- Zoom ready
- Yes (Zoom Rooms)
Physical & warranty
- Weight
- 10.7Kg (net), 12.0Kg (gross)
- Shipping Dimensions
- 600 × 545 × 285 mm (carton)
- Shipping Weight
- 12.0 kg
- Operating Temperature
- 0 °C - 40 °C
- Operating Humidity
- 10% - 95%
Other
- Type
- Zoom Rooms system for large rooms
- Package Contents
- MCore mini-PC, MTouch II touch panel, UVC84 USB PTZ camera, Yealink soundbar, 3 × VCM34 microphones
- More Information
- MTouch II: 8" IPS 1280 × 800, 10-point touch, 3.5 mm headset jack, human motion sensor, bracket 28°–50°
