65" · 4K UHD · Android 13
Specktron

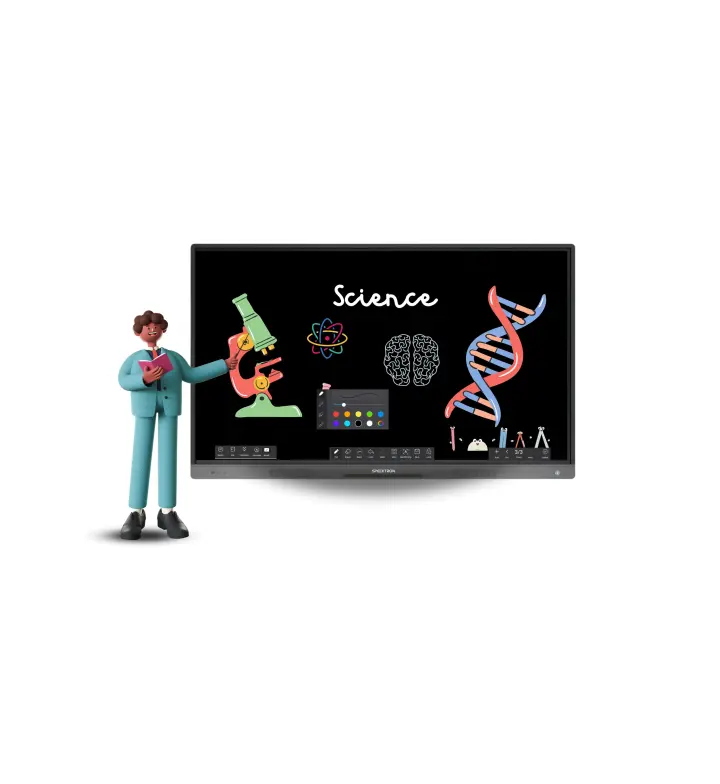

Specktron CDX 86" 4K Infrared Touch / 8GB / 128GB-256GB
SKU CDX-86i
86-inch 4K interactive flat panel with 20/50-point infrared touch, Android 12, built-in camera, and 450 cd/m² brightness. Includes wireless dongle and 4K camera with microphone.
- Screen size
- 86"
- Resolution
- 4K UHD
- System
- Android 12
- Operating System
- Android 12
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 4K UHD
- Brightness
- 450 cd/m²
- Backlight
- D-LED
Touch and writing
- Touch Technology
- Infrared
- Touch Points
- 20 / 50 Points Multi Touch
Built-in system
- Operating System
- Android 12
Description
The Specktron CDX 86" is a 4K UHD interactive flat panel featuring 20 or 50-point infrared touch technology, built-in 4K camera with integrated microphone, and optional OPS PC slot. High brightness output of 450 cd/m² ensures content visibility in brightly lit environments. Android 12 OS provides access to standard educational and collaboration applications. Infrared touch offers robust operation in high-ambient-light situations common in auditoriums and large classrooms.
Dual HDMI inputs and VGA port accommodate various content sources including legacy equipment and modern displays. Optional OPS PC slot enables integrated desktop functionality. Audio capabilities include 40W speaker output (20W × 2) with PC audio input. Multiple USB ports support peripheral connectivity. Dual Gigabit Ethernet and Wi-Fi 6E connectivity enable networked installations and video distribution. Operating power is <400W with 0.5W standby consumption, suitable for energy-conscious facilities.
Ideal for: Large auditoriums and lecture halls in universities; corporate conference facilities and training centers; public display installations in government buildings and educational institutions; and 24/7 operation environments across Oman.
- 86" 4K UHD display, 450 cd/m² brightness, 10-bit color
- 20 or 50-point infrared touch technology, ±1 mm accuracy
- Built-in 4K camera with microphone; optional OPS PC slot
- 8GB RAM, 128GB or 256GB storage, Android 12 OS
- 40W audio output (20W × 2); PC audio input
- Dual HDMI, VGA, Dual Gigabit Ethernet, Wi-Fi 6E, USB connectivity
- 4mm toughened glass (Mohs 9); VESA 800 × 400 mm; 67 kg
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 4K UHD
- Brightness
- 450 cd/m²
- Backlight
- D-LED
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
Touch
- Touch Technology
- Infrared
- Touch Points
- 20 / 50 Points Multi Touch
System
- Operating System
- Android 12
Connectivity
- HDMI Input
- HDMI-In × 2
- HDMI Output
- HDMI-Out × 1
- USB Ports
- USB 2.0 × 3 / USB 3.0 × 2 / USB-C × 1
- Ethernet
- Gigabit LAN (RJ45) × 2
- Bluetooth
- Bluetooth 5.2
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 20W × 2
Physical & warranty
- Dimensions
- 1953.96 × 1173.62 × 90.6 mm
- Weight
- 67 Kg
- Wall Mount
- 800 × 400 mm (VESA)
- Power Consumption
- < 400 W
Other
- Accessories
- ST-Series Wireless Dongle, Camera with Mic
