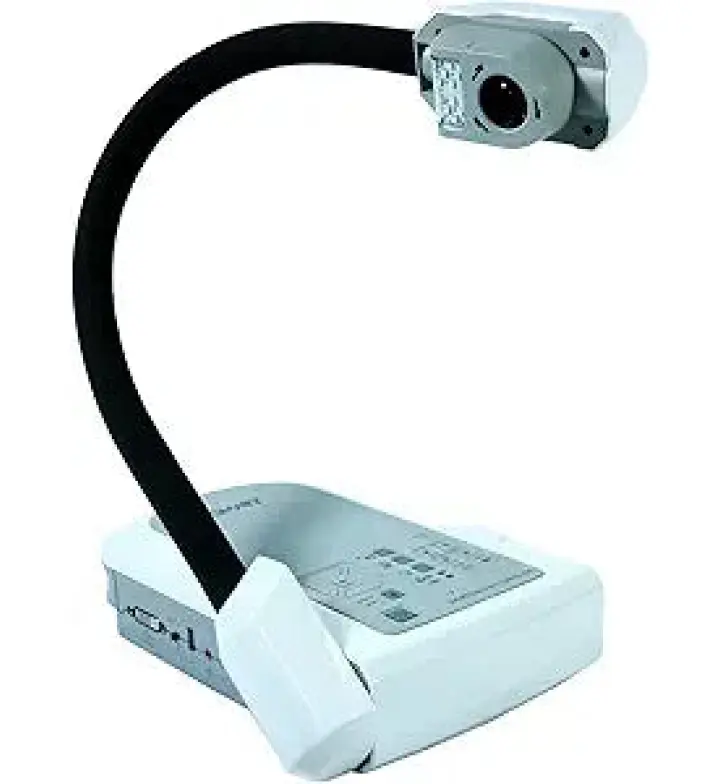

SMART Document Camera SDC-450 (5MP, 8× Optical Zoom)
MPN SDC-450
SKU SDC-450
5MP flexible-arm document camera with 8× optical and 10× digital zoom for interactive classroom and training visualisation.
- Camera Resolution
- 5 MP, max. 30 fps
- Warranty
- 5 Years
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Size, weight and warranty
- Warranty
- 5 Years
- Dimensions
- Folded: 10" W × 2 3/4" H × 12" D; Set up: 8" W × 21 3/4" H × 15" D
- Weight
- 5.4 lb (2.45 kg)
- Shipping Dimensions
- 482 × 145 × 320 mm (W × H × D)
Description
The SMART Document Camera SDC-450 is a desktop-mounted document camera combining a 5MP sensor, flexible arm, and built-in LED illumination for real-time visualisation of physical materials in educational and corporate settings. The camera delivers output via VGA, DVI, USB and Composite connections, supporting both Full HD presentation and archival recording to SD card or USB storage.
Dual zoom capabilities (8× optical, 10× digital) with manual or automatic focus enable precise framing of text-heavy materials like textbooks, slides and technical drawings. The built-in microphone captures narration or discussion during live sessions. A microscope adapter extends the camera's utility to close-up examination of specimens or fine detail, while the anti-glare sheet reduces reflections from glossy document surfaces. Maximum frame rate of 30 fps ensures smooth motion in video recording or live streaming scenarios.
Ideal for: Interactive classrooms, lecture halls, training rooms, medical and technical training facilities, and any setting where instructors need to project physical materials to a group audience.
- 5MP CMOS sensor with max 30 fps capture
- 8× optical zoom, 10× digital zoom with manual/automatic focus
- Flexible camera arm permits 90° rotation in Camera mode
- Built-in LED lamp with automatic/manual brightness control
- Connections: VGA, DVI, USB, Composite audio-video
- Storage: SD card, USB mass storage, internal storage
Specifications
Manufacturer specifications · confirmed on your quotation
Connectivity
- VGA input
- VGA In (D-sub 15-pin pass-through) × 1, VGA Out × 1 (up to 1080p 60 Hz)
- USB Ports
- USB mini-B × 1 (to computer)
- Additional Ports
- DVI-I Out × 1 (up to 1080p 60 Hz), Composite video out (RCA) × 1
- Audio in
- 3.5 mm Mic In × 1
- Audio out
- 3.5 mm Audio Out × 1
- SD card slot
- SD/SDHC card slot (1 GB to 32 GB)
Camera & audio
- Camera Resolution
- 5 MP, max. 30 fps
- Zoom Type
- 8× optical, 10× digital (80× total)
- Built In Microphone
- Yes (for voiceover during video recording)
Physical & warranty
- Dimensions
- Folded: 10" W × 2 3/4" H × 12" D; Set up: 8" W × 21 3/4" H × 15" D
- Weight
- 5.4 lb (2.45 kg)
- Shipping Dimensions
- 482 × 145 × 320 mm (W × H × D)
- Shipping Weight
- 4.5 kg
- Power Consumption
- Max. 21.6 W
- Operating Temperature
- 0 °C - 35 °C
- Operating Humidity
- 30% - 85%, non-condensing
- Certifications
- CB, CE, C-Tick, FCC, Energy Star (Level V)
- Warranty
- 5 Years
Other
- Type
- Document camera
- Included Cables
- Power 1.5 m, USB-A to USB mini-B 1.8 m, VGA HD15 1.8 m, composite video adapter cable
- Accessories
- Mixed reality cube, Anti-glare sheet, Microscope adapter
- More Information
- Lens with manual and auto focus, f 3.2 (wide) to f 6.8 (tele); shooting area max. 40 × 30 cm; LED illumination lamp; internal memory for up to 240 images; video recording to USB drive / SD; flexible rotating arm; microscope adapter included
