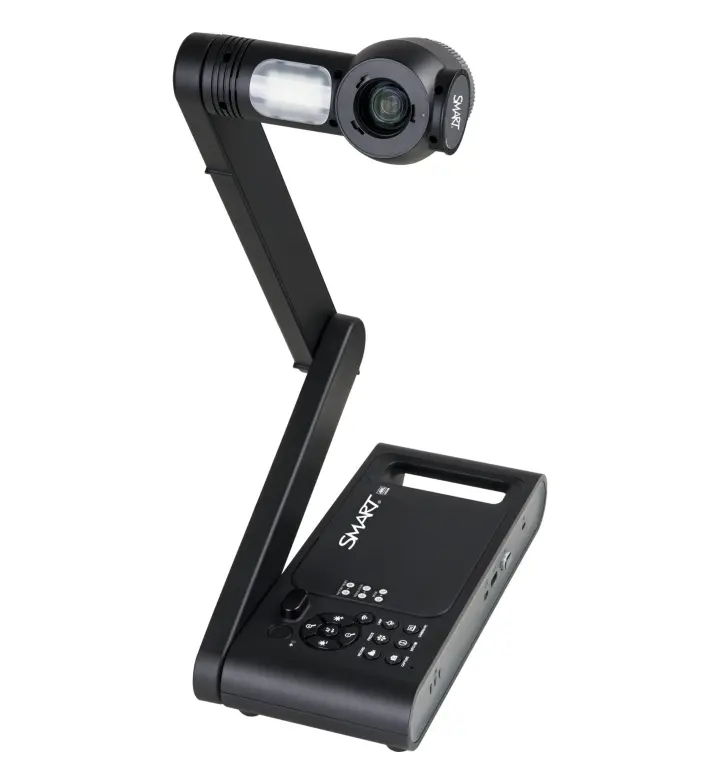

SMART Document Camera SDC-650 4K 13MP 230× Zoom
MPN SDC-650
SKU SDC-650
4K document camera with 13 MP sensor, 230× zoom capability (10× optical plus 23× digital), built-in microphone and LED lighting.
- Camera Resolution
- 3840 × 2160, max. 60 fps
- VESA
- 75 × 75 mm (M4)
- Warranty
- 5 Years
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Ports and connections
- HDMI Input
- HDMI In × 1
- HDMI Output
- HDMI Out × 1 (4K / 1080p / 720p @ 50/60 Hz)
- Wi-Fi
- 802.11a/b/g/n/ac, dual band 2.4/5 GHz
Description
The SMART SDC-650 is a 4K Ultra HD document camera designed for capture and projection of physical materials in educational and meeting environments. The 13 MP sensor delivers sharp image quality across documents, objects and demonstrations. Zoom capability combines 10× optical zoom with 23× digital zoom for 230× total magnification, enabling close detail visibility from distance.
The integrated microphone captures audio synchronized with video recording. Built-in LED lighting ensures consistent illumination of materials regardless of ambient room conditions. Wi-Fi streaming and HDMI/USB output provide flexible connectivity to displays and recording devices. UVC compliance enables plug-and-play operation with most video conferencing and recording software. The tilt and rotate capability (0°-90° camera head, 0°-180° software control) accommodates different document angles and heights.
Ideal for: Educational institutions, training facilities and corporate environments using live document demonstration, remote presentation and collaborative review of physical materials.
- Sensor: 13 MP, 4K Ultra HD resolution
- Zoom: 10× optical + 23× digital (230× total)
- Audio: built-in microphone
- Lighting: built-in LED
- Connectivity: Wi-Fi, HDMI, USB output
- Tilt/rotate: 0°-90° (camera head), 0°-180° (software)
- Weight: 5.7 lb (2.6 kg)
Specifications
Manufacturer specifications · confirmed on your quotation
Connectivity
- HDMI Input
- HDMI In × 1
- HDMI Output
- HDMI Out × 1 (4K / 1080p / 720p @ 50/60 Hz)
- USB Ports
- USB mini-B × 1 (to computer), USB 2.0 Type-A × 2 (1 for Wi-Fi dongle, 1 for USB storage)
- Wi-Fi
- 802.11a/b/g/n/ac, dual band 2.4/5 GHz
Camera & audio
- Camera
- 1/3.2" CMOS, 13 megapixels
- Camera Resolution
- 3840 × 2160, max. 60 fps
- Zoom Type
- 230× total (10× optical + 23× digital)
- Built In Microphone
- Yes
Physical & warranty
- Dimensions
- 6 1/8" W × 21 1/2" H × 23" L (15.9 cm × 54.6 cm × 58.7 cm)
- Weight
- 5.7 lb (2.6 kg)
- Shipping Dimensions
- 455 × 270 × 175 mm (W × H × L)
- Shipping Weight
- 3.7 kg
- VESA
- 75 × 75 mm (M4)
- Power Consumption
- Operating 7.7–8.7 W; max. 13.7 W (lamp on, charging)
- Operating Temperature
- 0 °C - 35 °C
- Operating Humidity
- 30% - 85% RH, non-condensing
- Certifications
- FCC, ISED, CE, UKCA, LVD, CB, EMCD, RED, EAC
- Warranty
- 5 Years (1 year battery)
Other
- Type
- 4K document camera (UVC webcam capable, Wi-Fi)
- Package Contents
- Power adapter and AC cord, Remote control, 2 × AAA batteries, 2 × Wi-Fi dongle, Anti-glare sheet, Installation instructions
- More Information
- Shooting area 480 × 345 mm @ 470 mm; auto/manual focus; built-in LED; Wi-Fi streaming up to 4K @ 30 fps; P2P / Wi-Fi / Miracast; UVC compliant; internal Li-ion battery 3.6 V/6800 mAh (up to 2 h)
