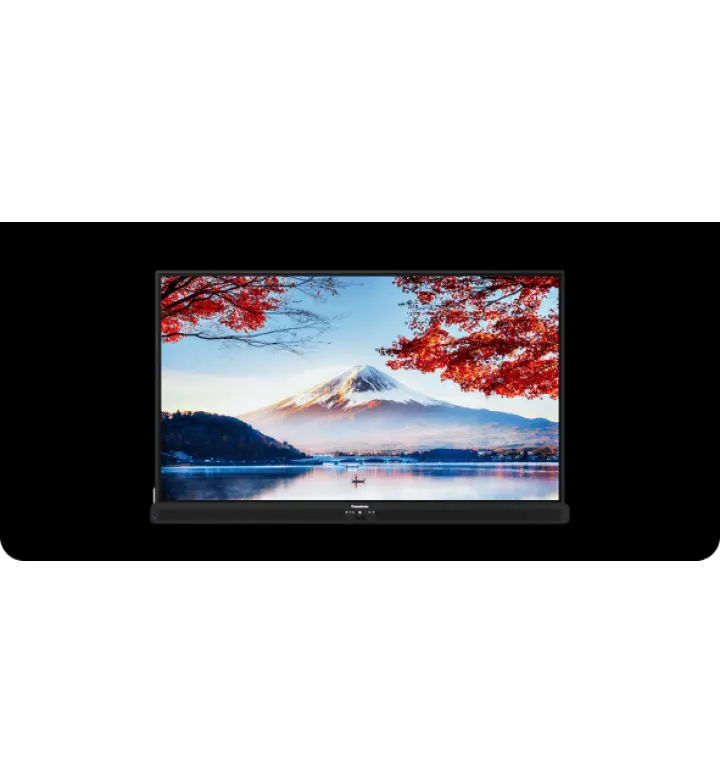

Promethean ActivPanel 10 86" 4K Interactive Display (AP10-B86)
SKU AP10‑B86
86-inch 4K infrared interactive flat panel with 565 cd/m² brightness, 40-point multi-touch, 100W USB-C power delivery, optimal for large auditoriums.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 40 points
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 4K UHD
- Brightness
- 565 cd/m²
- Backlight
- D-LED
Touch and writing
- Touch Points
- 40 points
- Touch Technology
- Infrared
Audio
- Speaker Output
- 2 × 20 W
- Speaker Type
- Built-in Speakers
Description
The Promethean ActivPanel 10 AP10-B86 is an 86-inch 4K UHD interactive display delivering 565 cd/m² brightness with infrared 40-point multi-touch technology and 3ms response time. The panel supports passive pen input with palm rejection and pen-touch differentiation for natural collaborative drawing and annotation. Comprehensive sensory features include proximity and ambient light sensors enabling adaptive brightness and presence detection.
Connectivity offers 2× HDMI 2.1 inputs, 2× Gigabit Ethernet, 4× USB 3.2 Gen 1, USB 2.0, 2× USB-C (100W and 65W power delivery), and RS232 control port. Anti-glare, anti-fingerprint, anti-smudge coating protects the 1950×1194mm display. Built-in stereo speakers deliver 40W audio output (2× 20W). Optional PC module slot supports Windows/Linux/Chrome OS integration. The D-LED backlight and 178° viewing angle ensure colour accuracy across the auditorium. Wake-on-LAN capability enables remote power management. Ideal for large-scale presentations, virtual classroom broadcasts, and corporate training hubs across عُمان requiring premium visual and collaborative features.
Ideal for: Large auditoriums, conference centres, university lecture halls, virtual training studios, corporate headquarters showrooms, and broadcast production control rooms requiring premium colour accuracy and simultaneous multi-user annotation.
- Display: 86-inch, 4K UHD, 565 cd/m², 178° viewing angle, 60Hz refresh
- Touch: 40-point infrared, <=3ms response, ±1mm accuracy, palm rejection
- Connectivity: HDMI 2.1 ×2, Ethernet ×2, USB 3.2 Gen 1 ×4, USB 2.0 ×1, USB-C ×2 (100W/65W)
- Audio: Built-in stereo, 40W output (2× 20W), audio in/out ports
- Sensors: Proximity, ambient light, auto-brightness adjustment
- Features: Anti-glare/fingerprint/smudge, D-LED backlight, optional PC module, Wake-on-LAN
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 4K UHD
- Brightness
- 565 cd/m²
- Backlight
- D-LED
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
Touch
- Touch Technology
- Infrared
- Touch Points
- 40 Points Multi Touch
Connectivity
- HDMI Input
- HDMI In (HDMI 2.1) × 2
- HDMI Output
- HDMI Out × 1
- USB Ports
- USB 3.2 Gen 1 × 4, USB 2.0 × 1
- Ethernet
- RJ45 (1000 Mbps Port) × 2
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 20 W
Physical & warranty
- Dimensions
- 1950 × 107 × 1194 mm
- Weight
- 62.9 kg
- Wall Mount
- 800 × 600 mm (VESA)
- Power Consumption
- < 176 W
Other
- Included Cables
- HDMI Cable × 1, USB Cable (A-B) × 1, Regional Power Cable × 1, USB-C Cable × 1
- Accessories
- Remote Control × 1, Batteries for Remote Control × 2, Passive Pens × 2, Sealed Antistatic Bag × 1, Desiccant × 8, VESA Mount Screws (M8) × 4, Mini PC Bracket with Screws × 1, Quick Install Guide × 1, Promethean ActivSuite Activation Hangtag × 1
