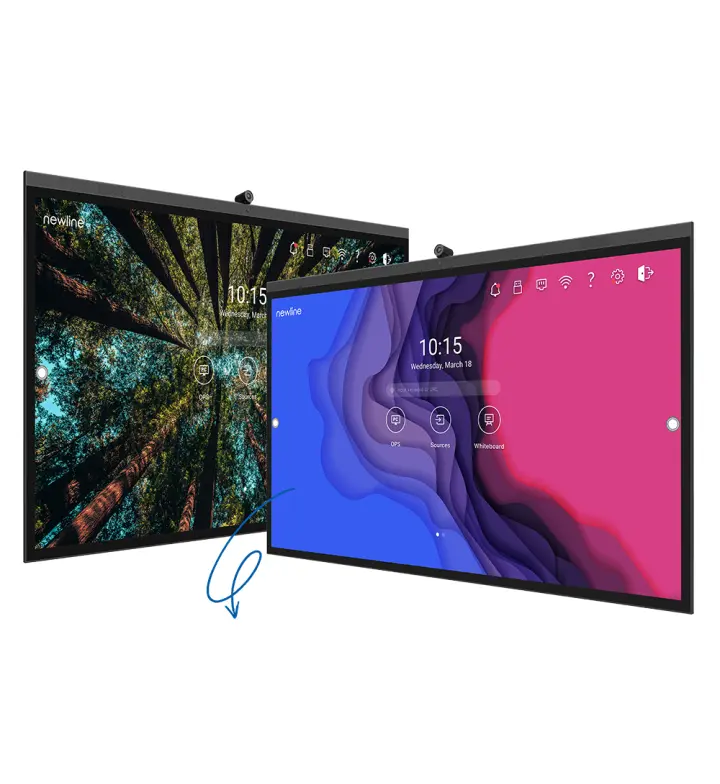

Newline Vega 75" 4K Interactive Flat Panel with Capacitive Touch
SKU TT-7522Z
75" 4K interactive panel with capacitive 40-point touch, Amlogic A311D2, 400 nits, Android 11, WiFi 6, 100W USB-C.
- Screen size
- 75"
- Resolution
- 4K UHD
- Touch
- 40 points
- System
- Android 11
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 75"
- Resolution
- 4K UHD
- Brightness
- 400 cd/m²
- Backlight
- Direct LED
Touch and writing
- Touch Points
- 40 points
- Touch Technology
- Capacitive
Built-in system
- Operating System
- Android 11
Description
The Newline Vega 75" is a 4K UHD interactive panel on Amlogic A311D2 Octa-Core (4× Cortex-A73 @2.2GHz + 4× Cortex-A53 @2.0GHz) with 8GB RAM, 128GB storage, and Android 11. At 400 nits brightness with 10-bit color and 40-point capacitive touch (±1mm accuracy, <8ms response), it maximizes collaborative visibility at 1497.1mm width. The blue light filter and anti-glare glass reduce eye strain during extended sessions.
Connectivity includes 3× HDMI 2.0 in/out, DisplayPort 1.2, dual Gigabit Ethernet, powered USB-C (100W), 4× USB Type-B touch, VGA, and RS232. Built-in stereo 20W x 2 + 15W center audio with proximity sensor for auto wake, plus optional OPS PC slot transforms the panel into a complete meeting solution. Wake-on-LAN support enables centralized power management.
Ideal for: Training rooms, university seminars, government meetings, healthcare consultations, and team collaboration zones requiring dependable performance.
- 75" 4K UHD, 400 nits, 10-bit color, 1497mm width
- 40-point capacitive touch, ±1mm accuracy, <8ms response
- Amlogic A311D2 Octa-Core 2.2/2.0 GHz, 8GB RAM, 128GB storage
- 3× HDMI 2.0, DisplayPort 1.2, dual Gigabit Ethernet
- USB-C 100W power + USB 3.0, 4× USB Type-B touch, VGA, RS232
- Stereo 20W x 2 + 15W, blue light filter, WiFi 6, wake-on-LAN
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 75"
- Resolution
- 4K UHD
- Brightness
- 400 cd/m²
- Backlight
- Direct LED
- Viewing Angle
- 178° (H) / 178° (V)
Touch
- Touch Technology
- Capacitive
- Touch Points
- 40 Points Multi Touch
System
- Operating System
- Android 11
- Processor
- Amlogic A311D2 octa-core, 4 × Cortex-A73 @ 2.2 GHz, 4 × Cortex-A53 @ 2.0 GHz
Connectivity
- HDMI Input
- HDMI In (HDMI 2.0) × 3
- HDMI Output
- HDMI Out 2.0 × 1
- USB Ports
- USB 3.0 Type-A × 3
- Ethernet
- Gigabit LAN (RJ45) × 2
- Bluetooth
- Bluetooth 5.2
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 20 W × 2 + 15 W × 1
Physical & warranty
- Dimensions
- 1497.1 × 919.6 × 83.8 mm
- Weight
- 36 kg
- Wall Mount
- 600 × 400 mm (VESA)
- Power Consumption
- < 133 W
Other
- Accessories
- remote, stylus
