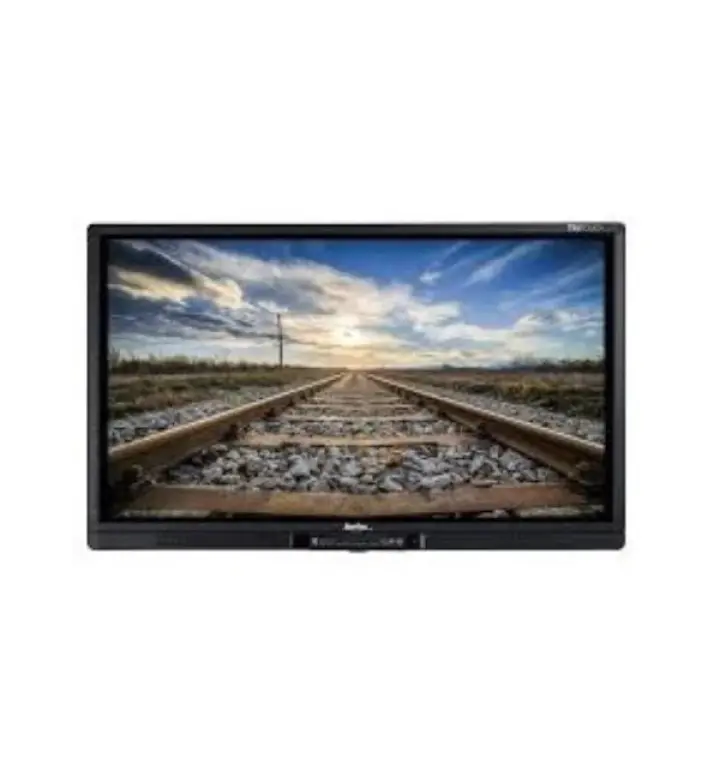

Newline TRUTOUCH UB 86" UHD 10-Point Interactive Display (TT-8616UB)
SKU Newline-UB86
86-inch 4K UHD interactive flat panel, 10-point touch, 3840×2160 resolution, HDMI/USB/DisplayPort. High-visibility corporate display.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 10 points
- OPS slot
- Yes
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 4K UHD
- Display Color
- 10bit
- Brightness
- 370 cd/m²
Touch and writing
- Touch Points
- 10 points
- Touch Technology
- Infrared
- Touch Accuracy
- 1 mm
- Touch Resolution
- 3840 × 2160
Audio
- Speaker Output
- 2 × 15 W
Description
The Newline TRUTOUCH UB Series delivers 4K UHD clarity at 86 inches for mission-critical boardroom environments. 3840×2160 resolution with 10-point multi-touch ensures crisp visuals and responsive interaction across Windows, macOS, and Android platforms. 60Hz refresh rate and fast touch response support fluid presentations and real-time data visualization.
Anti-glare, scratch-resistant panel optimizes visibility in high-visibility environments without reflections that distract during decision-making meetings. 16:9 aspect ratio matches native widescreen content. HDMI, USB, and DisplayPort connectors integrate seamlessly with enterprise AV systems and mobile devices. Wall-mountable frame supports permanent installation in executive boardrooms, analysis centres, and trading floors.
Ideal for: Executive boardrooms, financial trading floors, data analysis centres, broadcast control rooms, and corporate environments where 4K detail and touch interactivity drive high-stakes collaboration.
- 86-inch screen, 3840×2160 4K UHD resolution
- 10-point multi-touch, 60Hz refresh rate
- HDMI, USB, DisplayPort connections
- Anti-glare, scratch-resistant panel
- Windows, macOS, Android compatible
- Wall-mountable installation
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 4K UHD
- Display Color
- 10bit
- Brightness
- 370 cd/m²
- Backlight
- LED
- Ambient Light Sensor
- Yes
- Surface Protection
- Anti-Glare Tempered Glass
Touch
- Touch Technology
- Infrared
- Touch Points
- 10 Points Multi Touch
- Touch Accuracy
- 1 mm
- Touch Resolution
- 3840 × 2160
System
- Processor
- Dual-core 1.2 GHz (built-in Android system)
- OPS slot
- Yes
Connectivity
- HDMI Input
- HDMI In × 5 (1 front, 4 rear)
- HDMI Output
- HDMI Out × 1
- DisplayPort
- DisplayPort In × 1 (front)
- VGA input
- VGA × 1
- USB Ports
- USB × 3 (front), USB 3.0 × 1 (rear)
- Touch USB ports
- Touch USB × 5 (1 front, 4 rear)
- Audio in
- Microphone (3.5 mm) × 2, VGA Audio × 1, AV In × 1
- Audio out
- Headphones × 1, SPDIF × 1
- Ethernet
- LAN × 1, LAN Out × 1
- Serial Port
- RS232 × 1
- SD card slot
- Micro SD Reader × 1
Camera & audio
- Speaker Output
- 2 × 15 W
Physical & warranty
- Dimensions
- 79.5 × 47.6 × 4.6 in / 2019 × 1209 × 117 mm
- Weight
- 174.2 lbs / 79.0 kg
- Shipping Dimensions
- 84.6 × 52 × 12.2 in / 2149 × 1321 × 310 mm
- Shipping Weight
- 218.3 lbs / 99.0 kg
- Power Consumption
- < 450 W (Max)
- Power Standby
- < 0.5 W
- Operating Temperature
- 0 °C – 40 °C (32 °F – 104 °F)
- Operating Humidity
- 10% – 90% RH
