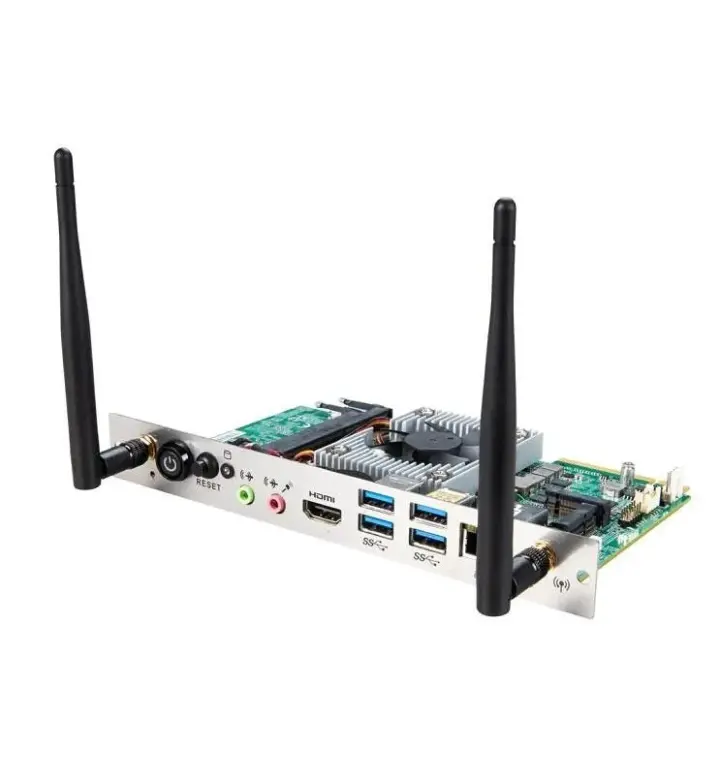

Newline WB7SXI20J, Intel Core i7 11th Gen, 16GB/256GB Windows 10 Pro
MPN WB7SXI20J
SKU WB7SXI20J
High-performance OPS compute module featuring Intel Core i7-1165G7, 16GB DDR4 RAM, 256GB SSD, and Intel Iris Xe graphics for interactive displays.
- Processor
- Intel Core i7-1165G7
- Storage
- 256 GB SSD (M.2 2280)
- Operating System
- Windows 10 Pro
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Ports and connections
- Bluetooth
- Bluetooth 5.0
- HDMI Output
- HDMI 2.0 Out × 1
- USB Ports
- USB-A 3.0 × 4, USB-C 3.1 × 2
- Audio in
- 3.5 mm Mic In × 1
Size and weight
- Weight
- 0.3 kg
- Dimensions
- 175 × 110 × 25 mm
- Shipping Dimensions
- 230 × 165 × 55 mm
- Shipping Weight
- 0.4 kg
Description
The Newline WB7SXI20J is a slot-in compute module designed for large-format interactive displays, delivering professional-grade performance through an 11th-generation Intel Core i7-1165G7 processor paired with 16GB DDR4 RAM and 256GB SSD storage. Intel Iris Xe integrated graphics provide hardware acceleration for video and graphics-intensive applications.
Built for seamless integration into collaborative display environments, the WB7SXI20J combines high-performance computing with wireless connectivity via WiFi 6 and Bluetooth 5.0, and features TPM 2.0 security module for encrypted communications and data protection. The compact 175 × 110 × 25 mm form factor slides into OPS slots without external cabling or modifications. Windows 10 Pro provides full Windows compatibility for enterprise software suites and institutional deployments.
Ideal for: corporate boardrooms, university lecture halls, training centers, and large-format interactive displays requiring Windows-based productivity and performance-demanding applications.
- Intel Core i7-1165G7 processor with Intel Iris Xe Graphics
- 16GB DDR4 RAM, 256GB SSD
- Windows 10 Pro operating system
- WiFi 6 and Bluetooth 5.0
- TPM 2.0 security module
- Slot-in OPS module design, no external power
- 175 × 110 × 25 mm compact form factor
Specifications
Manufacturer specifications · confirmed on your quotation
System
- Operating System
- Windows 10 Pro (licence included)
- Processor
- Intel Core i7-1165G7
- GPU
- Intel Iris Xe Graphics
- RAM
- 16 GB (2 × 8 GB DDR4 2133 MHz); max 32 GB
- Storage
- 256 GB SSD (M.2 2280)
Connectivity
- HDMI Output
- HDMI 2.0 Out × 1
- USB Ports
- USB-A 3.0 × 4, USB-C 3.1 × 2
- Audio in
- 3.5 mm Mic In × 1
- Audio out
- 3.5 mm Line Out × 1
- Ethernet
- Gigabit Ethernet (RJ45) × 1
- Wi-Fi
- Intel AX200, 802.11a/b/g/n/ac/ax, dual band (2.4 GHz and 5.0 GHz)
- Bluetooth
- Bluetooth 5.0
Physical & warranty
- Dimensions
- 175 × 110 × 25 mm
- Weight
- 0.3 kg
- Shipping Dimensions
- 230 × 165 × 55 mm
- Shipping Weight
- 0.4 kg
- Power Consumption
- 15 W (normal), 60 W (max)
- Power Standby
- 2 W
- Operating Temperature
- 0 °C – 60 °C
- Operating Humidity
- 10% – 95% (non-condensing)
- Certifications
- TPM 2.0; vPro supported (not included)
Other
- Type
- PC / Compute Module (SDM-L slot, Newline Flex)
- Compatible Models
- Newline Flex
