65" · 4K UHD · Android 13
Newline

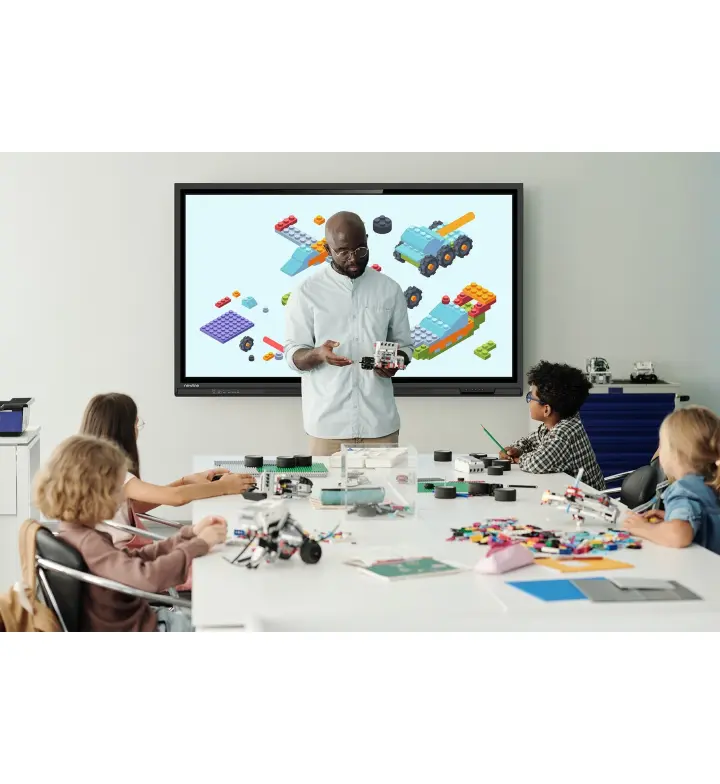

Newline 75" Lyra Pro Interactive Display
SKU TT-7523QA
75-inch 4K interactive display with Android 13, octa-core processor, 8GB RAM, 128GB storage, 50-point Stellar touch at <5ms response, 450 nits brightness, WiFi 6.
- Screen size
- 75"
- Resolution
- 4K UHD
- Touch
- 50 points
- System
- Android 13
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 75"
- Resolution
- 4K UHD
- Brightness
- 450 cd/m²
- Backlight
- Direct LED
Touch and writing
- Touch Points
- 50 points
- Touch Technology
- Stellar Touch Technology
Built-in system
- Operating System
- Android 13
Description
The Newline 75" Lyra Pro delivers a 4K UHD display with Amlogic A311D2 octa-core processor (4 × Cortex-A73 at 2.2 GHz, 4 × Cortex-A53 at 2.0 GHz) with 8GB RAM and 128GB storage. Running Android 13 with 10-bit color depth, it supports 50 simultaneous touch points via Stellar Touch Technology with ±1mm accuracy and <5ms response time. Direct LED backlight delivers 450 nits brightness with anti-glare smooth glass surface. Palm rejection enabled for natural handwriting and annotation.
Audio via 2 × 20W speakers. Connectivity includes 2 × HDMI 2.1 input (rear) and 1 × HDMI 2.1 input (front), 1 × HDMI 2.0 output, 2 × Gigabit Ethernet, DisplayPort 1.2, Type-C powered at 65W (front) and 15W (rear), WiFi 6, and Bluetooth 5.2. Multiple USB 3.2 Type-A ports (rear and front) and touch-USB connections. Optional OPS PC slot. Power consumption 119W; standby <0.5W. Dimensions 1735 × 1051 × 119 mm, weight 52 kg. RS232 serial, VESA 800 × 400 mm mount.
- 75" 4K UHD display, 60 Hz refresh, 10-bit color
- Amlogic A311D2 octa-core, 8GB RAM, 128GB storage
- Stellar Touch Technology: 50 points, ±1 mm accuracy, <5 ms response
- 2 × 20W speakers, 450 cd/m² brightness, anti-glare glass
- 2 × HDMI 2.1 input (rear), 1 × HDMI 2.1 (front), 1 × HDMI 2.0 output, 2 × Gigabit Ethernet, DisplayPort 1.2, dual Type-C
- Palm rejection, optional OPS PC slot, WiFi 6, Bluetooth 5.2
- Weight 52 kg, power 119W on, <0.5W standby, VESA 800 × 400 mm
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 75"
- Resolution
- 4K UHD
- Brightness
- 450 cd/m²
- Backlight
- Direct LED
- Viewing Angle
- 178° (H) / 178° (V)
Touch
- Touch Technology
- Stellar Touch Technology
- Touch Points
- 50 Points Multi Touch
System
- Operating System
- Android 13
- Processor
- Amlogic A311D2 octa-core processor 4 × Cortex-A73 at 2.2 GHz, 4 × Cortex-A53 at 2.0 GHz
Connectivity
- HDMI Input
- HDMI In 2.1 × 2 (Rear), HDMI In 2.1 × 1 (Front)
- HDMI Output
- HDMI Out 2.0 × 1
- USB Ports
- USB Type-A 3.2 × 2 (Rear), USB 3.2 Type-A × 2 (Front), USB 3.2 Type-A to Android × 1
- Ethernet
- Gigabit LAN (RJ45) × 2
- Bluetooth
- Bluetooth 5.2
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 20 W × 2
Physical & warranty
- Dimensions
- 1735 × 1051 × 119 mm
- Weight
- 52 kg
- Wall Mount
- 800 × 400 mm (VESA)
- Power Consumption
- 119 W
Complete the room
One quotation for the whole setup.
Select what else the room needs — we will price it together, with delivery and installation.
Delivery & installation in Oman
Delivered to Muscat, Salalah, Sohar, Nizwa and every other governorate, with installation available through our partner teams. Lead time for this model is confirmed on your written quotation.
Stock held in Muscat for fast-moving models — ask for current availability.
