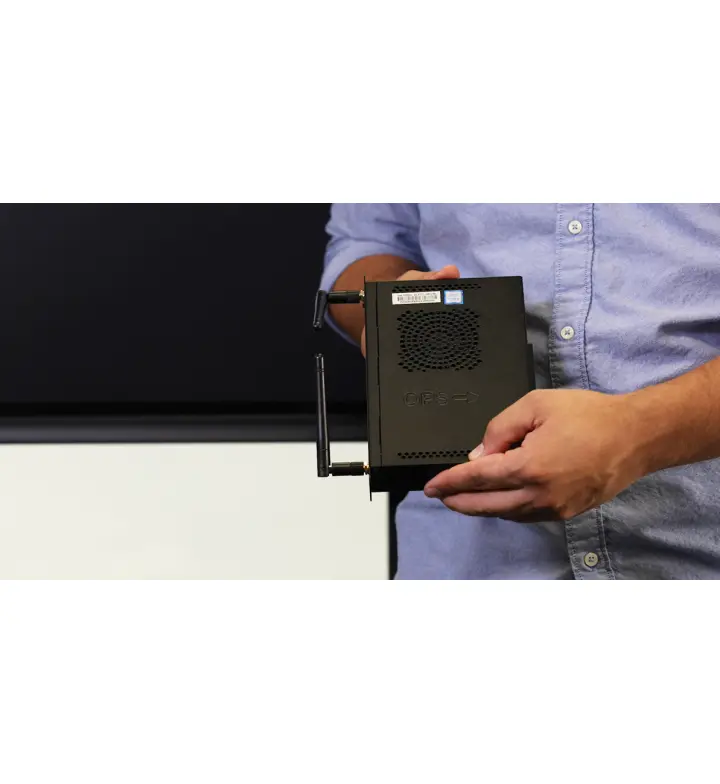

Newline WB7C120U 12th Gen Intel Core i7 OPS PC Module
MPN WB7C120U
SKU WB7C120U
Compact OPS PC module with 12th Gen Intel Core i7-1260P, 16GB RAM, 256GB SSD, and Windows 11 Pro for seamless touchscreen integration.
- Storage
- 256 GB SSD
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Built-in system
- GPU
- Intel Iris Xe
- Operating System
- Windows 11 Pro licence, MS Office 2019 Pro
- Processor
- Intel Core i7-1260P (12th Gen), 18 MB cache, up to 4.70 GHz
- RAM
- 16 GB (2 × 8 GB DDR4); expandable to 32 GB
Ports and connections
- Wi-Fi
- Wi-Fi 6
- HDMI Output
- HDMI 1.4 Out (4K@30 Hz) × 1; HDMI 2.0 (4K@60 Hz) via JAE 80-pin
- USB Ports
- USB-A 3.0 × 2, USB-A 2.0 × 2, USB-C (Thunderbolt 4.0) × 2
- Audio in
- 3.5 mm Mic In × 1
Size and weight
- Weight
- 0.7 kg
- Dimensions
- 180 × 119 × 30 mm
- Shipping Dimensions
- 258 × 250 × 77 mm
- Shipping Weight
- 1 kg
Description
The Newline WB7C120U is an OPS (Open Pluggable Specification) compute module delivering fast processing power through a 12th Gen Intel Core i7-1260P processor. With 16GB of RAM and a 256GB SSD, this module handles multitasking, large document files, and classroom or conference applications without performance degradation. Windows 11 Pro operating system provides institutional security, update management, and broad software compatibility.
The module integrates directly into compatible interactive flat panels via the standard OPS slot, eliminating the need for separate computers, cable management, or additional desk space. Wi-Fi 6 and Bluetooth 5.2 enable fast wireless connectivity for presentations and collaborative tools. HDMI 2.0 video output supports 4K resolution at 60Hz, making this module suitable for high-resolution educational content, video conferencing, and detailed design work. The compact form factor fits behind flat-panel displays in classrooms, boardrooms, and training centers.
Ideal for: Educational institutions upgrading existing interactive displays with modern compute, corporate training environments, government facilities, and any deployment requiring an integrated touchscreen computer without additional hardware footprint.
- Processor: 12th Gen Intel Core i7-1260P
- Memory: 16GB RAM
- Storage: 256GB SSD
- Operating system: Windows 11 Pro
- Wireless: Wi-Fi 6, Bluetooth 5.2
- Video output: HDMI 2.0 (4K@60Hz)
- Form factor: OPS (Open Pluggable Specification)
Specifications
Manufacturer specifications · confirmed on your quotation
System
- Operating System
- Windows 11 Pro licence, MS Office 2019 Pro
- Processor
- Intel Core i7-1260P (12th Gen), 18 MB cache, up to 4.70 GHz
- GPU
- Intel Iris Xe
- RAM
- 16 GB (2 × 8 GB DDR4); expandable to 32 GB
- Storage
- 256 GB SSD
Connectivity
- HDMI Output
- HDMI 1.4 Out (4K@30 Hz) × 1; HDMI 2.0 (4K@60 Hz) via JAE 80-pin
- USB Ports
- USB-A 3.0 × 2, USB-A 2.0 × 2, USB-C (Thunderbolt 4.0) × 2
- Audio in
- 3.5 mm Mic In × 1
- Audio out
- 3.5 mm Line Out × 1
- Ethernet
- RJ45 10/100/1000 M × 1
- Wi-Fi
- Wi-Fi 6
- Bluetooth
- Bluetooth 5.2
Physical & warranty
- Dimensions
- 180 × 119 × 30 mm
- Weight
- 0.7 kg
- Shipping Dimensions
- 258 × 250 × 77 mm
- Shipping Weight
- 1 kg
- Operating Temperature
- 0 °C – 45 °C
- Operating Humidity
- 5% – 95% (non-condensing)
- Certifications
- CE, RoHS, REACH; TPM 2.0 firmware
Other
- Type
- PC / Compute Module
