NEC

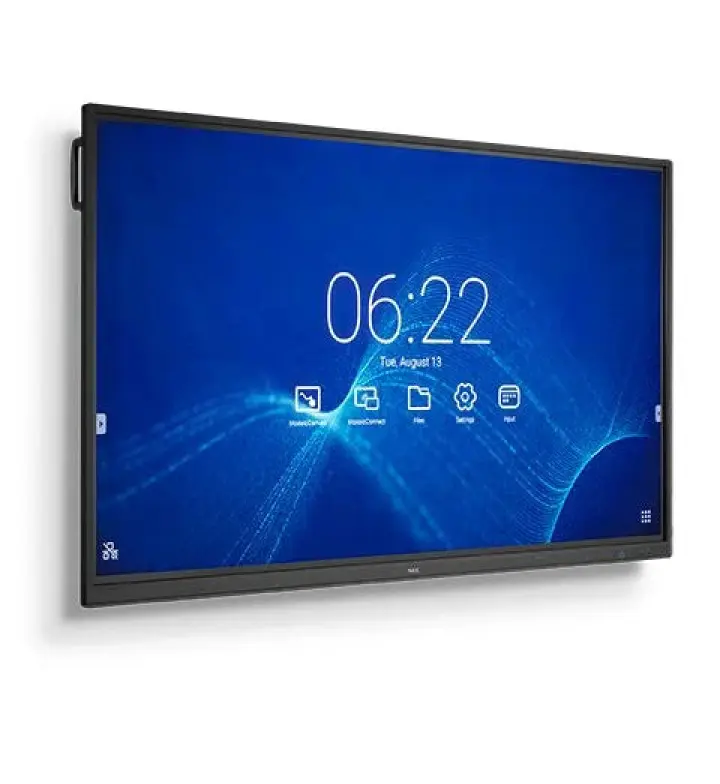

NEC MultiSync CB861Q 86" 4K UHD Interactive Display
MPN 60004825
SKU CB861Q 86
86-inch 4K UHD interactive flat panel with infrared multi-touch and Android OS. For large lecture halls and corporate auditoriums in Oman.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 20 points
- OPS slot
- Yes
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86"
- Resolution
- 4K UHD
- Display Color
- 10bit (1.073 billion colours)
- Brightness
- 350 cd/m² (300 cd/m² shipment setting)
Touch and writing
- Touch Points
- 20 points
- Touch Technology
- Infrared
- Touch Accuracy
- < 2 mm
Built-in system
- RAM
- 2 GB
- Storage
- 16 GB
- OPS slot
- Yes (OPS slot, max. 3.5 A / 63 W)
Description
The NEC MultiSync CB861Q is an 86-inch interactive flat panel delivering 4K UHD resolution (3840 × 2160) with infrared multi-touch technology. Built for large-scale collaborative settings—university lecture halls, government conference centres, and corporate auditoriums—the CB861Q accommodates simultaneous touch input from multiple participants with fast, reliable response.
The built-in Android operating system with Wi-Fi and Bluetooth enables standalone presentations without a PC. Optional external camera support allows video conferencing integration for hybrid meetings common in Omani government and corporate settings. Built-in speakers provide clear audio throughout large rooms. HDMI, USB, and RJ-45 Ethernet connectivity integrate with existing IT infrastructure. The anti-glare coating reduces reflections, maintaining image clarity from any viewing angle, critical in high-occupancy spaces.
Ideal for: University lecture halls, government boardrooms, corporate training theatres, and public consultation spaces across Oman.
- 86-inch screen, 4K UHD resolution (3840 × 2160)
- Infrared multi-touch with simultaneous inputs
- Android-based operating system
- Optional external camera support
- Built-in speakers for large rooms
- HDMI, USB, RJ-45 Ethernet connectivity
- Wi-Fi and Bluetooth wireless options
- Anti-glare coating for wide viewing angles
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86"
- Resolution
- 4K UHD
- Display Color
- 10bit (1.073 billion colours)
- Brightness
- 350 cd/m² (300 cd/m² shipment setting)
- Backlight
- IPS with Direct LED
- Viewing Angle
- 178° (H) / 178° (V)
- Surface Protection
- 4 mm thermal-tempered glass, anti-glare coating, 7H, 88% light transmission
Touch
- Touch Technology
- Infrared
- Touch Points
- 20 Points Multi Touch
- Touch Accuracy
- < 2 mm
- Palm Rejection
- No
System
- RAM
- 2 GB
- Storage
- 16 GB
- OPS slot
- Yes (OPS slot, max. 3.5 A / 63 W)
Connectivity
- HDMI Input
- HDMI × 3 (with HDCP)
- VGA input
- VGA × 1
- USB Ports
- USB 2.0 × 6 (downstream)
- Touch USB ports
- USB Type-B × 2 (upstream)
- Audio in
- 3.5 mm jack × 1
- Audio out
- 3.5 mm jack × 1, SPDIF × 1
- Ethernet
- LAN 100 Mbit (in / out)
- Wi-Fi
- Optional (wireless LAN module NP05LM2)
- Serial Port
- RS232
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 12 W
Physical & warranty
- Dimensions
- 1957.1 × 1159.8 × 86.8 mm (without stand)
- Weight
- 67.3 kg (without stand)
- Wall Mount
- 800 × 600 mm (VESA/FDMI), M8
- Power Consumption
- 365 W (Eco, shipment setting)
- Power Standby
- < 0.5 W; < 2 W (networked standby)
- Operating Temperature
- 0 °C – 40 °C
- Operating Humidity
- 10% – 90%
- Certifications
- BSMI, CE, EAC, EMC Class B, FCC, PSB, RCM, REACH, RoHS, SASO, UL/C-UL
- Warranty
- 3 Years (incl. backlight)
Other
- Accessories
- 3 × stylus, HDMI cable, power cable, remote control, USB cable, user manual, VGA cable, wall mount
Complete the room
One quotation for the whole setup.
Select what else the room needs — we will price it together, with delivery and installation.
Downloads
Delivery & installation in Oman
Delivered to Muscat, Salalah, Sohar, Nizwa and every other governorate, with installation available through our partner teams. Lead time for this model is confirmed on your written quotation.
Stock held in Muscat for fast-moving models — ask for current availability.
Questions about ordering
How do I get a price?
Ask for a written quotation. Use Request pricing on any product page, WhatsApp +968 9664 1360 or email info@touchscreens.ae with the model or part number, the quantity, the delivery location in Oman and whether installation is needed. The quotation covers pricing, availability, warranty and installation options.
Do you deliver across Oman, and how long does it take?
Yes — to Muscat, Salalah, Sohar, Nizwa and the other governorates. Lead time depends on the model, quantity and configuration, so it is confirmed in writing on the quotation and again when your purchase order is acknowledged.
Do you install?
Yes. Installation is available across Oman through our partner installation teams. Its scope — mounting, cabling, positioning, commissioning and handover — is written into the quotation, so anything outside it is clear before the visit.
What warranty applies?
The manufacturer's warranty applies, with the terms confirmed on your quotation. The quotation states the warranty holder, period and service level, and we coordinate any claim with the manufacturer or its authorised service partner on your behalf.
Do you support government tenders?
Yes. We quote tender quantities and supply what a tender file needs: an itemised quotation addressed to your entity, manufacturer datasheets, technical compliance sheets, the delivery and installation scope, and a warranty statement.
Can I get the quotation in Arabic?
Yes — in Arabic, English or both. Manufacturer datasheets are usually published in English.
