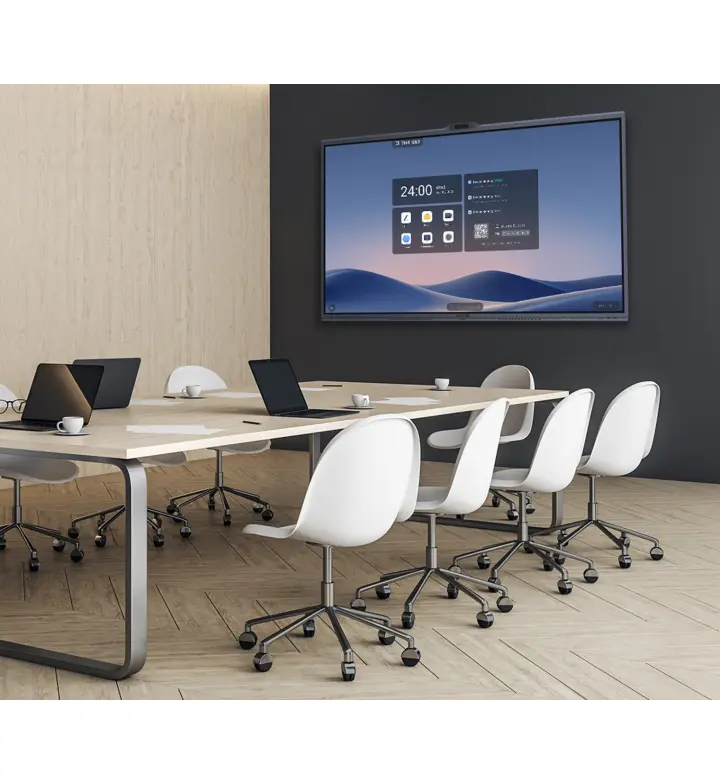

MAXHUB XBoard V7 86" 4K Interactive Display, 350 cd/m²

The MAXHUB XBoard V7 (model V8650) is an 86-inch 4K UHD interactive display with true 50-point multi-touch infrared technology and ±0.5 mm touch accuracy. The 3840×2160 panel runs at 60Hz native refresh with IPS backlight and anti-glare smooth glass surface, delivering 350 cd/m² brightness across a 178° viewing angle (H/V).

Built-in audio comprises a 16-microphone array with 180° pick-up range (0–15m for speech), dual 10W front channels plus 20W subwoofer, and line-level audio input and output. The 10-bit color depth captures professional-grade precision. An optional OPS PC slot allows direct integration of Windows or Android compute modules. Connectivity spans 2×HDMI In, 1×HDMI Out, 1×USB-C, 2×Gigabit Ethernet, 1×RS-232 serial, touch USB 2.0 port, and Wi-Fi 6 (2.4/5GHz). Bluetooth 5.2 links wireless input devices. No specifications for temperature or power consumption are documented in the supplied data.

Ideal for: Large-venue conferencing, corporate boardrooms, education auditoriums, and government command centers requiring collaborative multi-user touch interaction with integrated audio capture and modular compute flexibility.

• Screen Size: 86 inches, 4K UHD (3840×2160), 60Hz
• Touch: 50-point infrared, ±0.5mm accuracy
• Brightness: 350 cd/m²
• Viewing Angle: 178° (H) / 178° (V)
• Audio: 16-mic array (180°, 0–15m), 2×10W + 20W speakers, line audio in/out
• Connectivity: 2×HDMI In, 1×HDMI Out, 1×USB-C, 2×Gigabit Ethernet, RS-232, Wi-Fi 6, Bluetooth 5.2
• Display Color: 10-bit (professional-grade)
• Optional OPS PC slot for compute expansion
