65" · 4K UHD · Android 13
MAXHUB

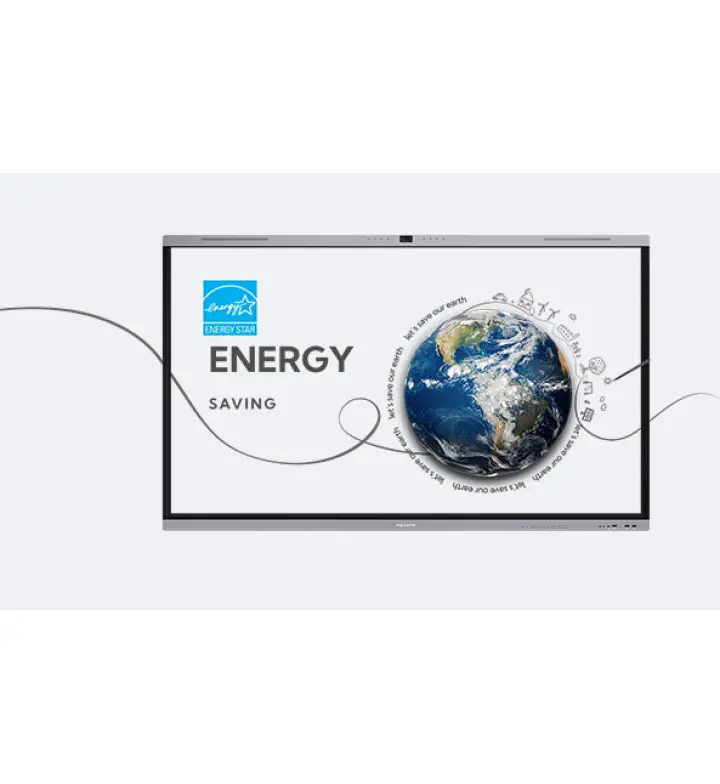

MAXHUB 75" U4 Series 4K Interactive Display
SKU U7540
75-inch 4K interactive display with Android 15, octa-core A76+A55, 16GB RAM, 256GB storage. 50-point infrared touch, 500 nits, 8-mic array with NFC support.
- Screen size
- 75"
- Resolution
- 4K UHD
- Touch
- 50 points
- System
- Android 15
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 75"
- Resolution
- 4K UHD
- Brightness
- 500 cd/m²
- Backlight
- DLED
Touch and writing
- Touch Points
- 50 points
- Touch Technology
- Infrared
Built-in system
- Operating System
- Android 15
- Processor
- A76 × 4 + A55 × 4 Octa-core, 2.4GHz
Description
The MAXHUB U7540 is a 75-inch 4K UHD interactive display powered by latest-generation octa-core processor (A76 ×4 + A55 ×4) running Android 15, configured with 16GB RAM and 256GB storage. The display delivers 500 cd/m² brightness with 50-point infrared multi-touch technology and ±0.5mm accuracy. Dual-band infrared ensures reliable response even under intense ambient lighting.
Premium audio comprises 2× 8W + 2× 18W stereo output plus 2× 12W + 2× 25W maximum capacity, totalling 76W. The integrated 8-mic array with 0–12m pick-up range and auto-mute supports natural voice communication. Non-glare 25% haze etched AG (anti-glare) surface protects the display while maintaining colour fidelity. Comprehensive I/O includes 4× HDMI, DisplayPort, 2× Gigabit Ethernet (in/out), 4× USB 3.0, 1× USB 2.0, 2× USB Type-C, SD card slot, and RS232. Optional PC module slot and mobile stand (ST33M, ST23B, EST09) support flexible deployment. Advanced sensor box (WL10C, WL20) enables smart presence detection and ambient monitoring. Designed for collaborative team spaces, educational institutes, and corporate innovation centers in عُمان.
Ideal for: Interactive training studios, corporate collaboration zones, large educational classrooms, innovation labs, government presentation halls, and design collaboration studios requiring advanced interactivity and voice-enabled group work.
- Display: 75-inch, 4K UHD, 500 cd/m², 178° viewing, 60Hz, etched-AG surface
- Processor: Octa-core (A76 ×4 + A55 ×4), Mali-G610 MP4, 6 TOPS NPU, Android 15
- Memory: 16GB RAM, 256GB storage, optional PC module slot, TF card port
- Touch: 50-point infrared, ±0.5mm accuracy, dual-band, fast response
- Audio: 76W total (2×8W + 2×18W, max 2×12W + 2×25W), 8-mic array (0-12m range)
- Connectivity: HDMI ×4, DisplayPort ×1, Ethernet ×2, USB 3.0 ×4, USB 2.0 ×1, USB-C ×2
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 75"
- Resolution
- 4K UHD
- Brightness
- 500 cd/m²
- Backlight
- DLED
- Refresh Rate
- 60 Hz
- Viewing Angle
- 178° (H) / 178° (V)
Touch
- Touch Technology
- Infrared
- Touch Points
- 50 Points Multi Touch
System
- Operating System
- Android 15
- Processor
- A76 × 4 + A55 × 4 Octa-core, 2.4GHz
Connectivity
- HDMI Input
- HDMI In × 4
- HDMI Output
- HDMI Out × 1
- USB Ports
- USB 2.0 × 1, USB 3.0 × 4
- Ethernet
- RJ45 IN × 1, RJ45 OUT × 1
- Bluetooth
- Bluetooth 5.2
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 8 W + 2 × 18 W (output); 2 × 12 W + 2 × 25 W (maximum)
Physical & warranty
- Power Consumption
- 80 W
Other
- Accessories
- Smart Pen (SP30B), Mobile Stand (ST33M, ST23B, EST09), Sensor Box (WL10C, WL20)
Complete the room
One quotation for the whole setup.
Select what else the room needs — we will price it together, with delivery and installation.
Downloads
Delivery & installation in Oman
Delivered to Muscat, Salalah, Sohar, Nizwa and every other governorate, with installation available through our partner teams. Lead time for this model is confirmed on your written quotation.
Stock held in Muscat for fast-moving models — ask for current availability.
Questions about ordering
How do I get a price?
Ask for a written quotation. Use Request pricing on any product page, WhatsApp +968 9664 1360 or email info@touchscreens.ae with the model or part number, the quantity, the delivery location in Oman and whether installation is needed. The quotation covers pricing, availability, warranty and installation options.
Do you deliver across Oman, and how long does it take?
Yes — to Muscat, Salalah, Sohar, Nizwa and the other governorates. Lead time depends on the model, quantity and configuration, so it is confirmed in writing on the quotation and again when your purchase order is acknowledged.
Do you install?
Yes. Installation is available across Oman through our partner installation teams. Its scope — mounting, cabling, positioning, commissioning and handover — is written into the quotation, so anything outside it is clear before the visit.
What warranty applies?
The manufacturer's warranty applies, with the terms confirmed on your quotation. The quotation states the warranty holder, period and service level, and we coordinate any claim with the manufacturer or its authorised service partner on your behalf.
Do you support government tenders?
Yes. We quote tender quantities and supply what a tender file needs: an itemised quotation addressed to your entity, manufacturer datasheets, technical compliance sheets, the delivery and installation scope, and a warranty statement.
Can I get the quotation in Arabic?
Yes — in Arabic, English or both. Manufacturer datasheets are usually published in English.
