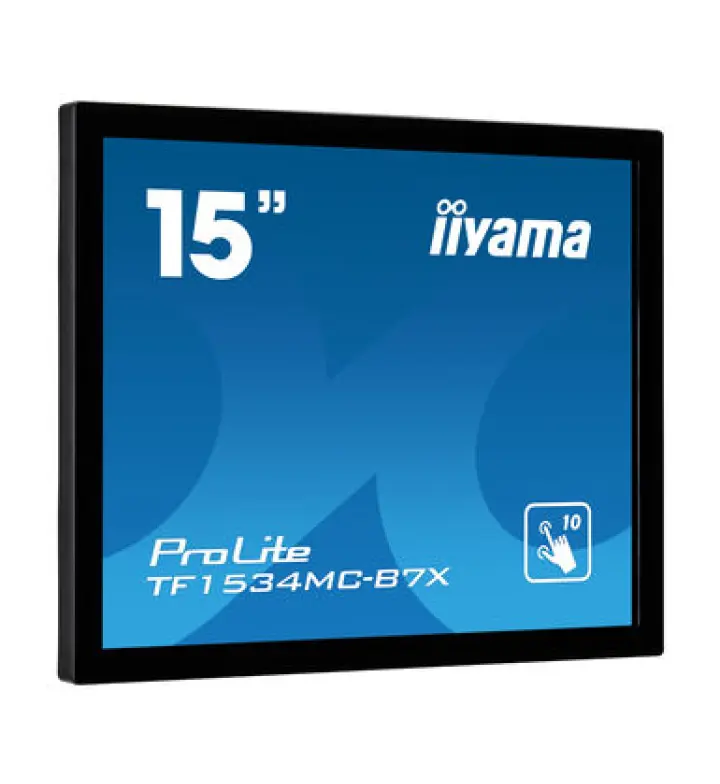

IIYAMA ProLite TF1534MC 15" Open Frame Touch Monitor, IP65
MPN TF1534MC-B7X
SKU TF1534MC-B7X
Rugged 15-inch open-frame touchscreen with 1024×768 resolution, IP65 front protection, projective capacitive touch and 6mm touch-through glass for industrial deployments.
- Screen size
- 15"
- Resolution
- 1024 × 768
- Touch
- 10 points
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 15 inch
- Resolution
- 1024 × 768
- Display Color
- 6bit
- Brightness
- 330 cd/m²
Touch and writing
- Touch Points
- 10 points
- Touch Technology
- Projected Capacitive Touch
Ports and connections
- HDMI Input
- HDMI × 1
- DisplayPort
- DisplayPort Input × 1
- VGA input
- VGA × 1
Description
The IIYAMA ProLite TF1534MC is a 15-inch open-frame interactive display designed for industrial and public-facing environments requiring sealed protection against dust and splashes. The IP65 front rating and 7H glass hardness enable reliable operation in workshops, kiosks, and systems exposed to moisture. Projective capacitive technology with 10-point multi-touch and palm rejection provides responsive interaction without moving parts or calibration drift.
At 1024×768 resolution with 370 cd/m² brightness (330 cd/m² with touch active), the display delivers clear imagery for both close and moderate viewing distances. The 6mm touch-through glass allows interaction directly on the protective surface, eliminating the need for overlay film. Power consumption remains efficient at just 9W typical and 0.3W off-mode, making it suitable for systems with limited power budgets. The compact 2.7kg weight (without box) simplifies integration into kiosk and cabinet designs.
Ideal for: Industrial control stations, automated washdown areas, healthcare equipment interfaces, kiosk cabinets, and public-access systems in Oman's coastal and industrial settings where ingress protection and long-term reliability are critical.
- Screen: 15 inches, 1024×768 resolution (0.8 megapixel), 6bit colour depth
- Touch: 10-point projective capacitive with palm rejection, 6mm touch-through glass
- Protection: IP65 front, anti-fingerprint coating, 7H glass hardness
- Brightness: 370 cd/m² (panel), 330 cd/m² with touch active
- Connectivity: VGA, HDMI, DisplayPort, USB; 100×100mm VESA
- Power: 9W typical, 1.5W standby, 0.3W off mode
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 15 inch
- Resolution
- 1024 × 768
- Display Color
- 6bit
- Brightness
- 330 cd/m²
- Backlight
- TN LED
- Viewing Angle
- horizontal 170°/vertical 160°
- Surface Protection
- anti-fingerprint coating, touch through-glass (6mm), glass hardness 7H, IP65 (front)
Touch
- Touch Technology
- Projected Capacitive Touch
- Touch Points
- 10 Points Multi Touch
- Palm Rejection
- Yes
Connectivity
- HDMI Input
- HDMI × 1
- DisplayPort
- DisplayPort Input × 1
- VGA input
- VGA × 1
Physical & warranty
- Dimensions
- 337.5 × 265.5 × 44.5 mm
- Weight
- 2.7 kg
- Shipping Dimensions
- 435 × 335 × 165 mm
- Shipping Weight
- 4 kg
- Wall Mount
- 100 × 100 mm (VESA)
- Power Consumption
- 9 W
- Power Standby
- 1.5 W
Other
- Model
- ProLite TF1534MC-B7X
- Included Cables
- power, USB, HDMI, DP
- Accessories
- quick start guide, safety guide, AC adapter, cable cover
