65" · 4K UHD · Android 13
iiyama

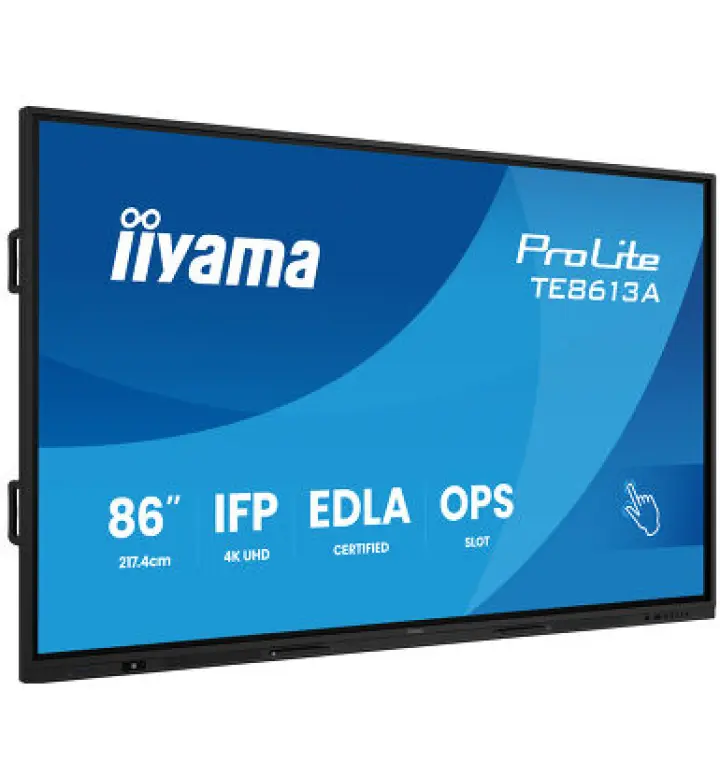

IIYAMA ProLite TE8613A-B1AG 86" 4K UHD Interactive Display, Google EDLA
MPN TE8613A-B1AG
SKU TE8613A-B1AG
86-inch 4K UHD interactive display, 500 cd/m² brightness, 40-point infrared touch, built-in 8-array microphone, Google EDLA certification. Enterprise classroom solution.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 40 points
- System
- Android 14
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86 inch
- Resolution
- 3840 × 2160
- Display Color
- 10bit
- Brightness
- 500 cd/m²
Touch and writing
- Touch Points
- 40 points
- Touch Technology
- PureTouch-IR
- Touch Accuracy
- ± 1 mm
Built-in system
- Operating System
- Android 14.0
- Processor
- Quad-core A73 × 4 (1.4GHz)
- GPU
- G52 MC1
- RAM
- 8 GB
Description
IIYAMA ProLite TE8613A-B1AG is a Google EDLA-certified interactive display for enterprise and educational environments. The 86-inch 4K UHD panel (3840×2160) delivers 500 cd/m² brightness with anti-glare glass, anti-gloss treatment, anti-bacterial coating and zero-gap air bonding for optimal optical performance. iiWare 21E operating system (Android 14 OS) runs on Quad-core A73 processor with 8GB RAM and 128GB storage. Infrared 40-point touch technology with ±1mm accuracy.
Comprehensive audio system includes 8-array microphone with 8m voice pick-up range and built-in speakers (2×20W front + 20W subwoofer). I/O encompasses 2 HDMI inputs (2.0, with ARC on HDMI #1), DisplayPort 1.2, dual Gigabit Ethernet, multiple USB 3.2 and USB-C ports with 100W and 65W PD charging, and serial RS232 port. Optical SPDIF audio output for external systems. Ambient light sensor, pen pick-up sensor, and PIR motion sensor enable smart features. Power consumption 282W typical; standby 0.5W, off mode 0.3W. Includes 3m power, USB and HDMI cables.
Ideal for: University lecture halls, corporate training centers, government education facilities, and large-format collaborative spaces in Oman requiring certified interactive displays with comprehensive audio and network capabilities.
- Screen: 86", 4K UHD (3840×2160), anti-glare glass, 178° viewing angle
- Touch: Infrared PureTouch-IR+, 40 points, ±1mm accuracy, <5ms response
- Brightness: 500 cd/m², 8.3 megapixel resolution, anti-bacterial coating
- System: iiWare 21E (Android 14, Google EDLA), Quad-core A73 1.4GHz, Mali G52 MC1 GPU, 8GB RAM, 128GB ROM
- Audio: 8-array microphone (8m range), 2×20W front + 20W subwoofer, optical SPDIF output
- I/O: HDMI×2 (with ARC), DisplayPort 1.2, RJ45×2, USB 3.2×2 Gen1, USB-C×2 (100W/65W PD), RS232×1
- Sensors: Ambient light, pen pick-up, PIR motion; power 282W typical, <0.5W standby; VESA 800×600
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86 inch
- Resolution
- 3840 × 2160
- Display Color
- 10bit
- Brightness
- 500 cd/m²
- Backlight
- IPS
- Viewing Angle
- 178° (H) / 178° (V)
- Blue Light Filter
- Yes
- Ambient Light Sensor
- Yes
- Surface Protection
- Anti-Glare Smooth Glass
Touch
- Touch Technology
- PureTouch-IR
- Touch Points
- 40 Points Multi Touch
- Touch Accuracy
- ± 1 mm
- Palm Rejection
- Yes
System
- Operating System
- Android 14.0
- Processor
- Quad-core A73 × 4 (1.4GHz)
- GPU
- G52 MC1
- RAM
- 8 GB
- Storage
- 128 GB
- OPS slot
- Optional
- Sensors
- Ambient light sensor, Pen Pick-up sensor, PIR motion sensor
Connectivity
- HDMI Input
- HDMI In (HDMI 2.0) × 2
- HDMI Output
- HDMI Out × 1
- DisplayPort
- Display Port 1.2 Input x 1
- USB-C input
- Type-C × 2 (Front × 1; Side × 1)
- USB-C functions
- USB 3.2 (Gen 1, 5Gbit), 100W/65W Charging, DP IN 1.2 Alt mode, Data, Touch
- USB Ports
- USB 3.2 × 3
- Touch USB ports
- USB
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Ethernet
- Gigabit LAN (RJ45) × 2
- Wi-Fi
- Wi-Fi 6
- Bluetooth
- Bluetooth 5.0
- Serial Port
- RS232 × 1
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 20W (Front facing + 20W Subwoofer)
Physical & warranty
- Dimensions
- 1955.6 × 1154 × 87 mm
- Weight
- 63.8 kg
- Shipping Dimensions
- 2095 × 1265 × 185 mm
- Shipping Weight
- 76.5 kg
- Wall Mount
- 800 × 600 mm (VESA)
- Power Consumption
- < 282 W
- Power Standby
- 0.5 W
- Operating Temperature
- 0 °C - 40 °C
- Warranty
- 5 Years
Other
- Included Cables
- Power (EU 3m, UK 3m), USB (3m), HDMI (3m)
- Accessories
- Remote control, Touch pen × 4, Wall Mounting Bracket, Webcam Mounting Bracket, Quick start guide, Safety guide
- More Information
- https://iiyama.com/gb_en/products/prolite-te8613a-b1ag/
Complete the room
One quotation for the whole setup.
Select what else the room needs — we will price it together, with delivery and installation.
Downloads
Delivery & installation in Oman
Delivered to Muscat, Salalah, Sohar, Nizwa and every other governorate, with installation available through our partner teams. Lead time for this model is confirmed on your written quotation.
Stock held in Muscat for fast-moving models — ask for current availability.
Questions about ordering
How do I get a price?
Ask for a written quotation. Use Request pricing on any product page, WhatsApp +968 9664 1360 or email info@touchscreens.ae with the model or part number, the quantity, the delivery location in Oman and whether installation is needed. The quotation covers pricing, availability, warranty and installation options.
Do you deliver across Oman, and how long does it take?
Yes — to Muscat, Salalah, Sohar, Nizwa and the other governorates. Lead time depends on the model, quantity and configuration, so it is confirmed in writing on the quotation and again when your purchase order is acknowledged.
Do you install?
Yes. Installation is available across Oman through our partner installation teams. Its scope — mounting, cabling, positioning, commissioning and handover — is written into the quotation, so anything outside it is clear before the visit.
What warranty applies?
The manufacturer's warranty applies, with the terms confirmed on your quotation. The quotation states the warranty holder, period and service level, and we coordinate any claim with the manufacturer or its authorised service partner on your behalf.
Do you support government tenders?
Yes. We quote tender quantities and supply what a tender file needs: an itemised quotation addressed to your entity, manufacturer datasheets, technical compliance sheets, the delivery and installation scope, and a warranty statement.
Can I get the quotation in Arabic?
Yes — in Arabic, English or both. Manufacturer datasheets are usually published in English.
