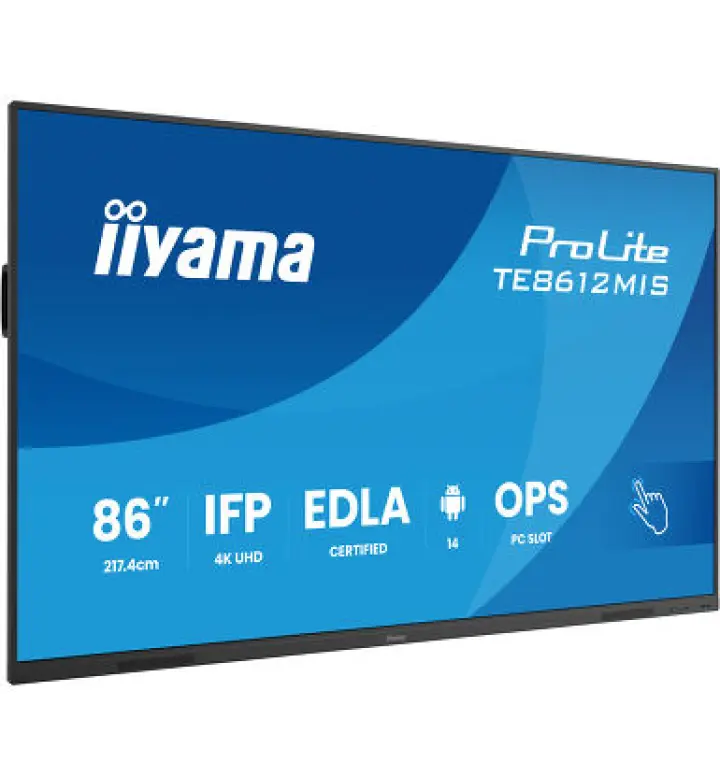

IIYAMA ProLite TE8612MIS-B4AG 86" 4K Interactive Display
MPN TE8612MIS-B4AG
SKU TE8612MIS-B4AG
86" 4K UHD interactive display, RK3576 processor, 8GB RAM, 128GB storage, 400 cd/m² brightness. Android 14, IPS backlight, OPS slot.
- Screen size
- 86"
- Resolution
- 4K UHD
- Touch
- 40 points
- System
- Android 14
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 86 inch
- Resolution
- 3840 × 2160
- Display Color
- 10bit
- Brightness
- 400 cd/m²
Touch and writing
- Touch Points
- 40 points
- Touch Technology
- PureTouch-IR
- Touch Accuracy
- +- 1.5mm
Built-in system
- Operating System
- Android 14.0
- Processor
- RK3576 Octa-core A72 × 4 + A53 × 4
- GPU
- Mali G52 MC3
- RAM
- 8 GB
Description
The IIYAMA ProLite TE8612MIS-B4AG is a premium 86-inch 4K UHD interactive flat panel with iiWare 13E (Android 14 OS) and Google EDLA certification. Powered by RK3576 octa-core processor (A72 × 4 + A53 × 4) with Mali-G52 MC3 GPU, it excels in high-impact collaborative environments.
8 GB RAM and 128 GB ROM ensure smooth multitasking. 400 cd/m² brightness with ambient light sensor and blue-light filter provides comfortable extended viewing. PureTouch-IR technology with 40-point touch and 5-point writing achieves ±1.5 mm accuracy for precise control. IPS DLED backlight with anti-glare coated glass and zero-gap air bonding delivers superior image quality and panel longevity. Supports optional Intel OPS slot for integrated PC module. Dual Gigabit Ethernet, Wi-Fi 6, dual Type-C with DP 1.2 alt mode (65W front, 15W rear), two HDMI 2.0 inputs, VGA input, and five USB ports.
Ideal for: Large government auditoriums, university multipurpose halls, corporate executive centers, and institutional showcase facilities across Oman requiring maximum screen real estate and professional presentation capability.
- 86" display, 4K UHD (3840×2160), 60 Hz refresh
- RK3576 octa-core processor, Mali-G52 MC3 GPU
- 40-point touch with 5-point writing, ±1.5 mm accuracy
- 8 GB RAM, 128 GB ROM, Android 14 with Google EDLA
- 400 cd/m² brightness, 10-bit color, IPS backlight
- Optional Intel OPS slot, dual Gigabit Ethernet, Wi-Fi 6
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 86 inch
- Resolution
- 3840 × 2160
- Display Color
- 10bit
- Brightness
- 400 cd/m²
- Backlight
- IPS DLED
- Viewing Angle
- 178° (H) / 178° (V)
- Blue Light Filter
- Yes
- Ambient Light Sensor
- Yes
- Surface Protection
- Anti-Glare Smooth Glass
Touch
- Touch Technology
- PureTouch-IR
- Touch Points
- 40 Points Multi Touch
- Touch Accuracy
- +- 1.5mm
System
- Operating System
- Android 14.0
- Processor
- RK3576 Octa-core A72 × 4 + A53 × 4
- GPU
- Mali G52 MC3
- RAM
- 8 GB
- Storage
- 128 GB
- OPS slot
- Optional
Connectivity
- HDMI Input
- HDMI In (HDMI 2.0) × 2
- HDMI Output
- HDMI Out × 1
- DisplayPort
- Display Port 1.2 Input x 1
- VGA input
- VGA × 1 (Rear)
- USB-C input
- Type-C × 2 (Front × 1; Rear × 1)
- USB-C functions
- USB 3.2 Gen 1, 65W PD (Front), 15W PD (Rear), DP IN 1.2
- USB Ports
- USB 3.2 × 4, USB-C 3.2 × 1, USB-C 2.0 × 1
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Ethernet
- Gigabit LAN (RJ45) × 2
- Wi-Fi
- Wi-Fi 6, 2.4G/5G
- Bluetooth
- Bluetooth 5.0
- Serial Port
- RS232 × 1
- SD card slot
- Micro SD Card Slot × 1
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 16W
Physical & warranty
- Dimensions
- 1957 × 1160 × 98 mm
- Weight
- 48.5 kg
- Shipping Dimensions
- 2110 × 1291 × 225 mm
- Shipping Weight
- 64.5 kg
- Wall Mount
- 800 × 600 mm (VESA)
- Power Consumption
- < 181 W
- Power Standby
- 0.5 W
- Operating Temperature
- 0 °C - 40 °C
- Warranty
- 5 Years
Other
- Included Cables
- Power, USB, HDMI
- Accessories
- Remote control, Touch pen × 4, Mounting bracket for NUC, Mounting bracket for webcam, Quick start guide, Safety guide
