iiyama

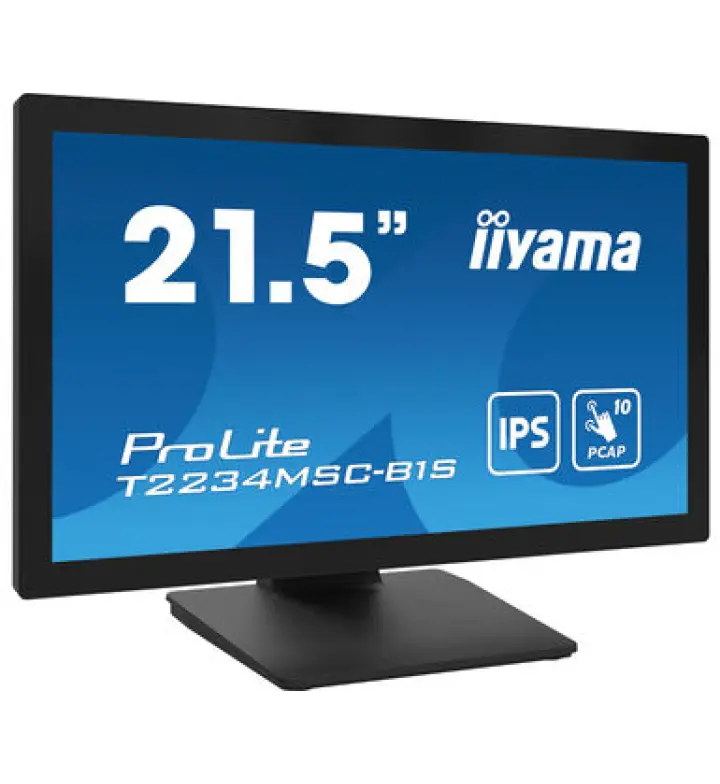

IIYAMA ProLite T2234MSC-B1S 22" Full HD 10-Point Capacitive Touchscreen
MPN T2234MSC-B1S
SKU T2234MSC-B1S
22" Full HD 1920×1080 interactive display with 10-point capacitive touch, 305 cd/m² brightness, IPS panel, anti-fingerprint coating, palm rejection.
- Screen size
- 22"
- Resolution
- Full HD
- Touch
- 10 points
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 22 inch
- Resolution
- 1920 × 1080
- Display Color
- 8bit
- Brightness
- 305 cd/m²
Touch and writing
- Touch Points
- 10 points
- Touch Technology
- Projected Capacitive Touch
Audio
- Speaker Output
- 2 × 3W
- Speaker Type
- Built-in Speakers
Description
The IIYAMA ProLite T2234MSC-B1S is a 22" Full HD interactive touchscreen designed for corporate collaboration, education, and public-access kiosks. The 1920×1080 resolution on an IPS panel delivers consistent colour accuracy and brightness of 305 cd/m² with 178° viewing angles in all directions. Projective capacitive 10-point multi-touch with palm rejection enabled provides fluid, responsive interaction for simultaneous multi-user input.
Protective tempered glass with 7H surface hardness and anti-fingerprint coating reduces maintenance in high-touch environments. Dual 3W built-in stereo speakers deliver clear audio feedback. Connectivity includes HDMI, VGA, DisplayPort 1.2, USB touch upstream, and standard USB downstream ports. Power consumption of 21 W typical enables efficient operation. Supplied with power cable, USB, HDMI, audio cables, quick-start guide, safety guide, and cable cover for clean installation.
Ideal for: Corporate boardrooms, educational institutions, government service offices, and hospitality venues in Oman requiring durable interactive displays with collaborative touch capability.
- Display: 22 inches, Full HD (1920×1080 @ 2.1 megapixel), IPS panel
- Touch: 10-point projective capacitive, palm rejection, HID protocol
- Brightness: 305 cd/m², 178° viewing angle (H and V)
- Connectivity: HDMI, VGA, DisplayPort 1.2, USB touch, USB 2.0 downstream
- Audio: Built-in 2×3W stereo speakers
- Protection: 7H tempered glass, anti-fingerprint coating
- Power: 21 W typical; Included: Power, USB, HDMI, audio cables; guides
- Mounting: VESA 100×100 mm standard
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 22 inch
- Resolution
- 1920 × 1080
- Display Color
- 8bit
- Brightness
- 305 cd/m²
- Backlight
- IPS
- Viewing Angle
- 178° (H) / 178° (V)
- Surface Protection
- Anti-glare
Touch
- Touch Technology
- Projected Capacitive Touch
- Touch Points
- 10 Points Multi Touch
- Palm Rejection
- Yes
Connectivity
- HDMI Input
- HDMI × 1
- DisplayPort
- DisplayPort Input × 1
- VGA input
- VGA × 1
- Touch USB ports
- Touch-USB × 1
- Audio out
- Speakers 2 × 3W
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 3W
Physical & warranty
- Dimensions
- 517.5 × 374 × 239.5 mm
- Weight
- 5.9 kg
- Wall Mount
- 100 × 100 mm (VESA)
- Power Consumption
- 21W typical
- Power Standby
- 1.5W
Other
- Included Cables
- power, USB, HDMI, Audio, DP
- Accessories
- quick start guide, safety guide, AC adapter, cable cover
