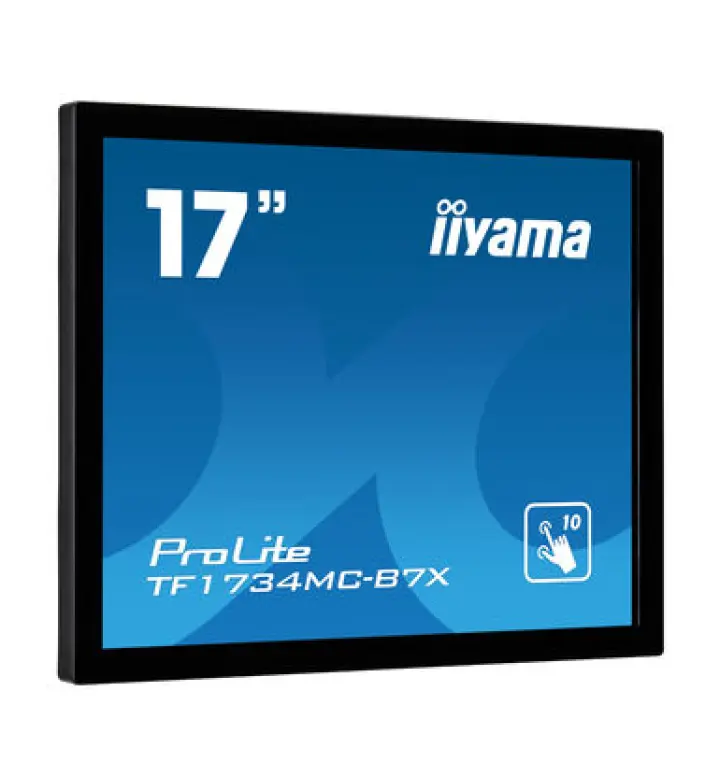

IIYAMA ProLite TF1734MC-B7X 17" 10-Point Touch Monitor
MPN TF1734MC-B7X
SKU TF1734MC-B7X
17-inch 1280×1024 TN LED touchscreen with 10-point projective capacitive multi-touch, palm rejection, 315 cd/m² brightness, open-frame design.
- Screen size
- 17"
- Resolution
- HD
- Touch
- 10 points
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 17 inch
- Resolution
- 1280 × 1024
- Display Color
- 8bit
- Brightness
- 315 cd/m²
Touch and writing
- Touch Points
- 10 points
- Touch Technology
- Projected Capacitive Touch
- Touch Accuracy
- +- 2mm
- Touch Response Time
- 5ms (BTB)
Ports and connections
- HDMI Input
- HDMI × 1
- DisplayPort
- DisplayPort Input × 1
- VGA input
- VGA × 1
Description
IIYAMA ProLite TF1734MC-B7X is a 17-inch 5:4 aspect ratio interactive touchscreen (1280×1024 resolution, 1.3 megapixel) featuring TN LED backlit panel with projective capacitive 10-point multi-touch and palm rejection. The panel achieves 315 cd/m² brightness, with 170-degree horizontal and 160-degree vertical viewing angles. Optical bonded surface with anti-glare coating and ±2mm touch accuracy ensures reliable interaction.
Input connectivity includes VGA ×1, HDMI ×1, DisplayPort ×1 for video sources. 5ms gray-to-gray response time (BTB) delivers responsive touchscreen performance. 13W typical power draw; 1.5W standby; 0.3W off. 3.6kg unboxed (4.9kg boxed). VESA 100×100mm wall mount compatible. Includes quick-start guide, safety guide, AC adapter, and cable cover for clean installation.
Ideal for: Industrial control interfaces, retail point-of-sale systems, healthcare kiosks, and interactive training displays across Oman requiring compact 17-inch touch monitors.
- 17-inch 1280×1024 resolution, 5:4 aspect ratio, TN LED panel
- 10-point projective capacitive multi-touch, palm rejection, ±2mm accuracy
- 315 cd/m² brightness, 170° (H) / 160° (V) viewing angles
- VGA ×1, HDMI ×1, DisplayPort ×1 video inputs
- Anti-glare optical bonded surface, 5ms GTG response time
- 13W typical; 1.5W standby, 0.3W off; VESA 100×100mm mount
- Includes adapter, cables, quick-start and safety guides, cable cover
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 17 inch
- Resolution
- 1280 × 1024
- Display Color
- 8bit
- Brightness
- 315 cd/m²
- Backlight
- TN LED
- Viewing Angle
- horizontal/vertical: 170°/160°
- Surface Protection
- Anti-Glare Smooth Glass
Touch
- Touch Technology
- Projected Capacitive Touch
- Touch Points
- 10 Points Multi Touch
- Touch Accuracy
- +- 2mm
- Touch Response Time
- 5ms (BTB)
- Palm Rejection
- Yes
Connectivity
- HDMI Input
- HDMI × 1
- DisplayPort
- DisplayPort Input × 1
- VGA input
- VGA × 1
Physical & warranty
- Dimensions
- 369 × 307 × 47.5 mm
- Weight
- 3.6 kg
- Shipping Dimensions
- 455 × 387 × 145 mm
- Shipping Weight
- 4.9 kg
- Wall Mount
- 100 × 100 mm (VESA)
- Power Consumption
- 13 W
- Power Standby
- 1.5 W
Other
- Included Cables
- power, USB, HDMI, DP
- Accessories
- quick start guide, safety guide, AC adapter, cable cover
