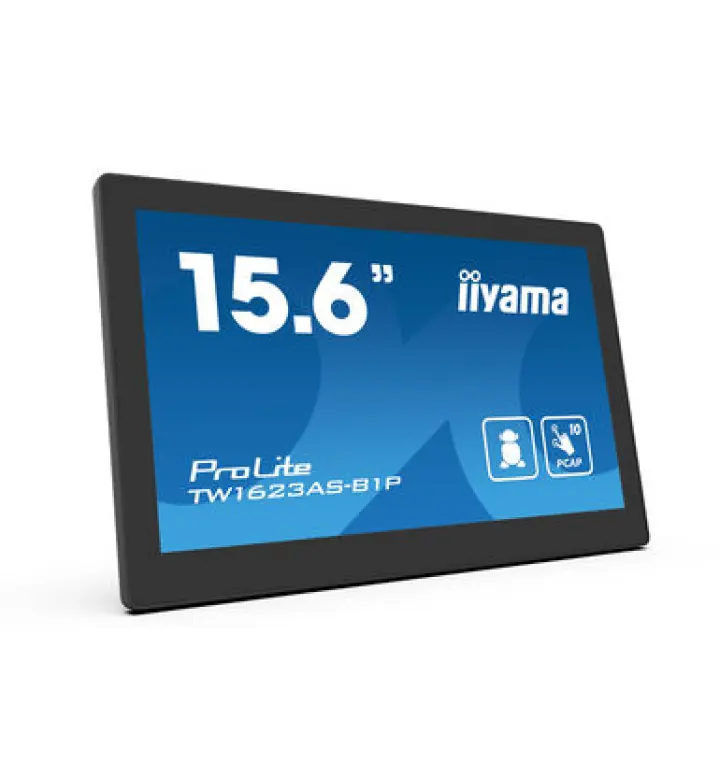

IIYAMA ProLite TW1623AS-B1P 15.6" Full HD PoE Touchscreen (385 cd/m²)
MPN TW1623AS-B1P
SKU TW1623AS-B1P
15.6-inch Full HD interactive touchscreen with 10-point PCAP touch, Android 13, Rockchip RK3568, 4GB RAM, 32GB storage, Power over Ethernet, 385 cd/m².
- Screen size
- 15.6"
- Resolution
- Full HD
- Touch
- 10 points
- System
- Android 13
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 15.6 inch
- Resolution
- 1920 × 1080
- Display Color
- 8bit
- Brightness
- 385 cd/m²
Touch and writing
- Touch Points
- 10 points
- Touch Technology
- Projected Capacitive Touch
Built-in system
- Operating System
- Android 13.0
- Processor
- Rockchip RK3568 Quad-core A55*4
- GPU
- G52 MP2
- RAM
- 4 GB
Description
The IIYAMA ProLite TW1623AS-B1P is a 15.6-inch Full HD interactive touchscreen optimized for fixed-location kiosk, self-service and point-of-sale deployments. Android 13 runs with Rockchip RK3568 processor over a single Gigabit PoE connection (IEEE 802.3 at, max 30W). 10-point projective capacitive touch on 6H-hardness glass (1.8mm) supports robust multi-user interaction in high-traffic retail, hospitality and government settings.
Integrated microphone enables two-way audio for remote support, video calls and drive-through communication. 385 cd/m² brightness ensures readability in daylight-facing windows and bright indoor spaces. Mini HDMI output (1920×1080 @60Hz) can feed secondary displays. USB 2.0 × 3 and SD card slot connect barcode readers, card readers and networked peripherals. 1.5 kg weight and 100×100 VESA bracket suit wall or arm-mounting in retail, clinic and administrative spaces with minimal structural impact.
Ideal for: Retail customer service desks, restaurant ordering systems, pharmacy prescription pickup, hotel check-in, government permit counters and interactive wayfinding across Oman requiring integrated audio and always-on reliability via PoE power.
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 15.6 inch
- Resolution
- 1920 × 1080
- Display Color
- 8bit
- Brightness
- 385 cd/m²
- Backlight
- IPS
- Viewing Angle
- 170°/170° (H/V), right/left 85°/85°, up/down 85°/85°
- Surface Protection
- anti-fingerprint coating, glass thickness 1.8mm, glass hardness 6H
Touch
- Touch Technology
- Projected Capacitive Touch
- Touch Points
- 10 Points Multi Touch
System
- Operating System
- Android 13.0
- Processor
- Rockchip RK3568 Quad-core A55*4
- GPU
- G52 MP2
- RAM
- 4 GB
- Storage
- 32 GB
Connectivity
- HDMI Output
- HDMI Out × 1
- USB Ports
- USB 2.0 × 3
- Audio out
- Audio Out × 1
- Ethernet
- Gigabit LAN (RJ45) × 1
- Wi-Fi
- Wi-Fi IEEE802.11a/b/g/n/ac
- Bluetooth
- Bluetooth 5.2
- SD card slot
- SD Card Slot × 1
Camera & audio
- Camera
- Microphone × 1
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 2W
Physical & warranty
- Dimensions
- 387 × 244 × 30.5 mm
- Weight
- 1.5kg
- Shipping Dimensions
- 477 × 295 × 75 mm
- Shipping Weight
- 2.4kg
- Wall Mount
- 100 × 100 mm (VESA)
- Power Consumption
- 24W typical
- Power Standby
- 0.5W
Other
- Included Cables
- AC adapter
- Accessories
- quick start guide, safety guide, AC adapter, cable cover
