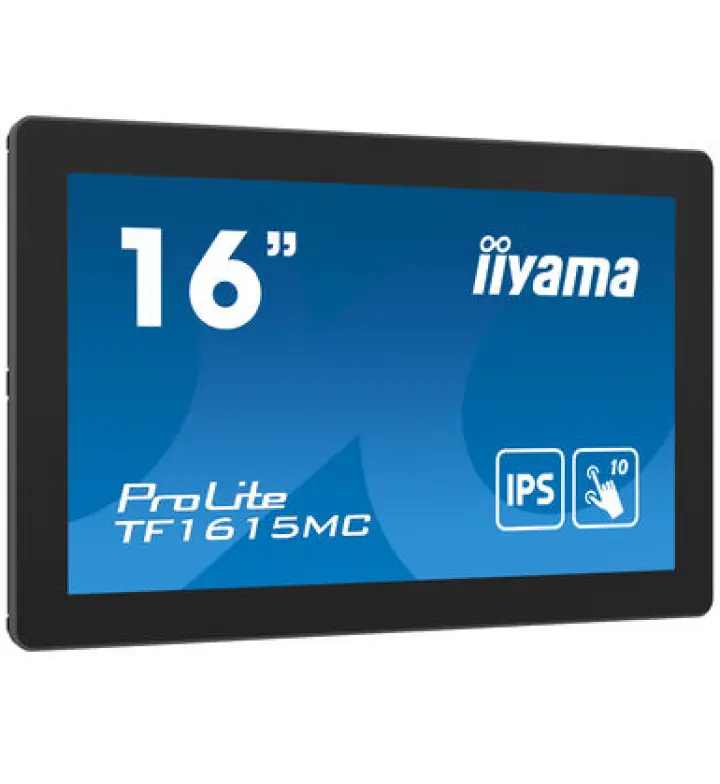

IIYAMA ProLite TF1615MC-B1 15.6" Full HD PCAP Touchscreen
MPN TF1615MC-B1
SKU TF1615MC-B1
15.6-inch Full HD projective capacitive 10-point touchscreen with IPS panel, open-frame design, 405 cd/m² brightness, touch-through-glass.
- Screen size
- 15.6"
- Resolution
- Full HD
- Touch
- 10 points
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 15.6 inch
- Resolution
- 1920 × 1080
- Display Color
- 16:9 aspect ratio
- Brightness
- 405 cd/m²
Touch and writing
- Touch Points
- 10 points
- Touch Technology
- Projected Capacitive Touch
- Touch Response Time
- 25ms (BTB)
Ports and connections
- HDMI Input
- HDMI × 1
- DisplayPort
- DisplayPort Input × 1
- VGA input
- VGA × 1
- Audio out
- Mini jack × 1
Description
IIYAMA ProLite TF1615MC-B1 is a 15.6-inch Full HD (1920×1080) open-frame interactive touchscreen equipped with projective capacitive 10-point multi-touch and touch-through-glass optical bonding. The IPS LED-backlit panel delivers 405 cd/m² brightness with 178-degree viewing angles horizontally and vertically. 25ms gray-to-gray response time ensures responsive user interaction.
Connectivity options include HDMI ×1, DisplayPort ×1, VGA ×1, plus mini-jack audio output ×1 for audio signals. RJ45 Ethernet ×1 supports network-based monitor control. 18W typical power consumption; 1.5W standby; 0.3W off mode. 2.5kg unboxed weight (4.3kg with packaging). VESA 100×100mm wall mounting. Includes power cable, USB, HDMI, and DisplayPort cables plus quick-start guide and safety guide.
Ideal for: Retail kiosks, medical device interfaces, interactive information displays, and embedded system control panels across Oman requiring networkable touchscreen solutions.
- 15.6-inch Full HD 1920×1080, 16:9 aspect ratio, IPS LED backlight
- 10-point projective capacitive touch, 25ms BTB response
- 405 cd/m² brightness, 178° viewing angle (H/V)
- HDMI ×1, DisplayPort ×1, VGA ×1, mini-jack audio ×1, RJ45 Ethernet ×1
- Touch-through-glass optical bonding, anti-glare surface protection
- 18W typical; 1.5W standby, 0.3W off; VESA 100×100mm mount
- Includes power and video cables, quick-start guide, safety guide
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 15.6 inch
- Resolution
- 1920 × 1080
- Display Color
- 16:9 aspect ratio
- Brightness
- 405 cd/m²
- Backlight
- IPS
- Viewing Angle
- 178° (H) / 178° (V)
Touch
- Touch Technology
- Projected Capacitive Touch
- Touch Points
- 10 Points Multi Touch
- Touch Response Time
- 25ms (BTB)
Connectivity
- HDMI Input
- HDMI × 1
- DisplayPort
- DisplayPort Input × 1
- VGA input
- VGA × 1
- Audio out
- Mini jack × 1
- Ethernet
- RJ45 ×1 (monitor control input)
Physical & warranty
- Dimensions
- 398.5 × 246 × 42 mm
- Weight
- 2.5 kg
- Shipping Dimensions
- 470 × 145 × 343 mm
- Shipping Weight
- 4.3 kg
- Wall Mount
- 100 × 100 mm (VESA)
- Power Consumption
- 18 W
- Power Standby
- 1.5 W
- Operating Temperature
- 0 °C - 40 °C
Other
- Included Cables
- power, USB, HDMI, DP
- Accessories
- quick start guide, safety guide, AC adapter, external control pad
