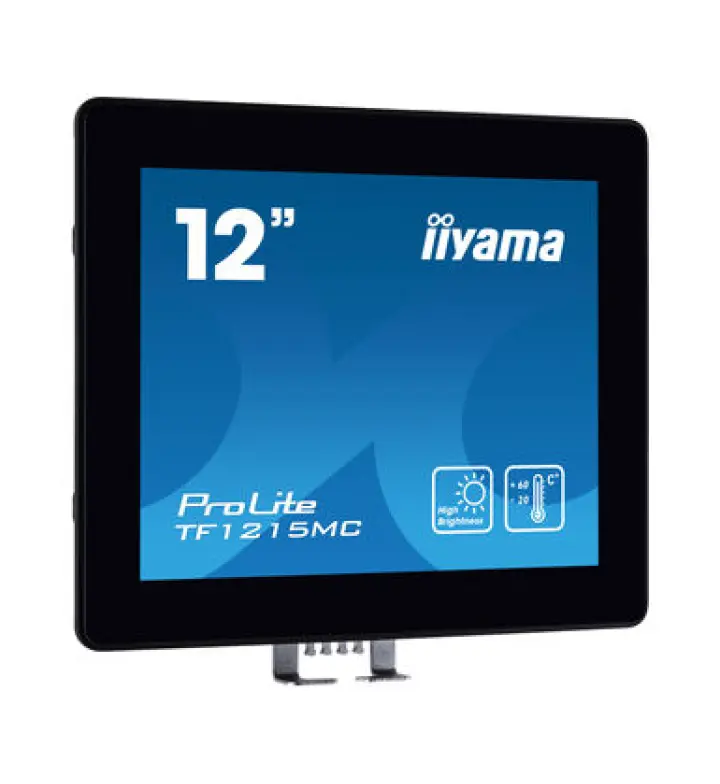

IIYAMA ProLite TF1215MC-B1 12.1" 10-Point Capacitive Touchscreen
MPN TF1215MC-B1
SKU TF1215MC-B1
Compact 12.1" XGA touchscreen with 10-point capacitive touch, 450 cd/m² brightness, IP65 front rating, ideal for retail and transportation kiosks.
- Screen size
- 12.1"
- Resolution
- 1024 × 768
- Touch
- 10 points
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 12.1 inch
- Resolution
- 1024 × 768
- Display Color
- 6bit
- Brightness
- 450 cd/m²
Touch and writing
- Touch Points
- 10 points
- Touch Technology
- Projected Capacitive Touch
Ports and connections
- HDMI Input
- HDMI In × 1
- DisplayPort
- DisplayPort Input × 1
- VGA input
- VGA × 1
- Touch USB ports
- Touch-USB × 1
Description
The IIYAMA ProLite TF1215MC-B1 is a rugged 12.1" projective capacitive touchscreen engineered for high-traffic retail, transportation, and public-access environments. The 1024×768 resolution reaches 450 cd/m² brightness, ensuring legibility in bright ambient light. IPS panel technology delivers 178° viewing angles both horizontally and vertically, critical for multi-user kiosk deployments.
Rated IP65 on the front face with water-tight seals, 6 mm tempered glass, and 7H surface hardness that passes 60,950 ball drop testing. Palm rejection enabled for comfortable finger operation without accidental activation. Built-in mini-jack audio output. Connectivity includes VGA, HDMI, DisplayPort 1.2, USB for touch control, and powered USB-C upstream connection. Supplied with AC adapter and external control pad for standalone operation.
Ideal for: Transportation terminals, retail checkout points, airport service desks, and government kiosks throughout Oman requiring sealed, high-durability interactive displays.
- Display: 12.1 inches, XGA (1024×768), IPS with 450 cd/m² brightness
- Touch: 10-point projective capacitive, palm rejection, HID protocol
- Durability: IP65 front, 7H hardness, 6 mm tempered glass, ball-drop certified
- Connectivity: VGA, HDMI, DisplayPort, USB touch, USB-C powered upstream
- Audio: Mini-jack stereo output
- Standby Power: 0.55 W; Off: 0.5 W
- Mounting: VESA 100×100 mm
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 12.1 inch
- Resolution
- 1024 × 768
- Display Color
- 6bit
- Brightness
- 450 cd/m²
- Backlight
- IPS Technology
- Viewing Angle
- 178° (H) / 178° (V)
- Surface Protection
- Anti-Glare Smooth Glass
Touch
- Touch Technology
- Projected Capacitive Touch
- Touch Points
- 10 Points Multi Touch
- Palm Rejection
- Yes
Connectivity
- HDMI Input
- HDMI In × 1
- DisplayPort
- DisplayPort Input × 1
- VGA input
- VGA × 1
- Touch USB ports
- Touch-USB × 1
- Audio out
- Audio Out × 1
Physical & warranty
- Dimensions
- 308.5 × 248 × 41.5 mm
- Weight
- 2.1 kg
- Shipping Dimensions
- 435 × 355 × 165 mm
- Shipping Weight
- 3.9 kg
- Wall Mount
- 100 × 100 mm (VESA)
- Power Consumption
- 10 W
- Power Standby
- 0.55 W
- Operating Temperature
- -20 °C to 60 °C
Other
- Included Cables
- power, USB, HDMI, DP
- Accessories
- quick start guide, safety guide, AC adapter, external control pad
