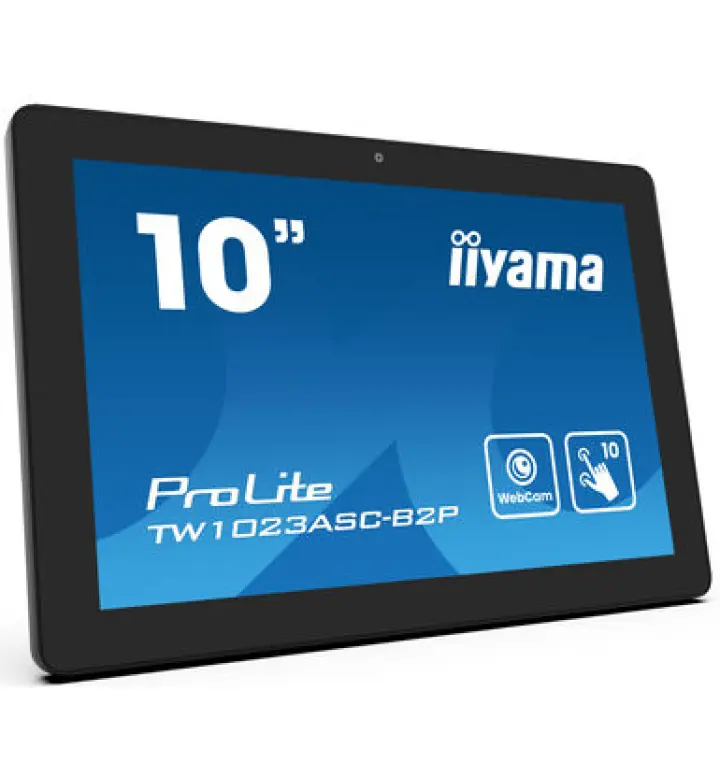

IIYAMA ProLite TW1023ASC-B2P 10.1" HD PoE Android Touchscreen (387 cd/m²)
MPN TW1023ASC-B2P
SKU TW1023ASC-B2P
10.1-inch HD interactive touchscreen with 10-point PCAP touch, Android 13, Rockchip RK3568, 4GB RAM, 32GB storage, Power over Ethernet, 5MP webcam, 387 cd/m².
- Screen size
- 10.1"
- Resolution
- HD
- Touch
- 10 points
- System
- Android 13
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Screen Size
- 10.1 inch
- Resolution
- 1280 × 800
- Display Color
- 8bit
- Brightness
- 387 cd/m²
Touch and writing
- Touch Points
- 10 points
- Touch Technology
- Projected Capacitive Touch
Built-in system
- Operating System
- Android 13.0
- Processor
- Rockchip RK3568 Quad-core A55 × 4
- GPU
- G52 MP2
- RAM
- 4 GB
Description
The IIYAMA ProLite TW1023ASC-B2P is a 10.1-inch HD interactive touchscreen powered by Android 13 and Rockchip RK3568 quad-core processor. It connects via single Gigabit Ethernet cable (IEEE 802.3 at, max 30W PoE), eliminating separate power supplies in point-of-sale, kiosk and fixed-installation environments. 10-point projective capacitive touch with anti-fingerprint coating supports multi-user tap and drag on 6H-hardness glass (1.25mm thickness).
Built-in 5-megapixel webcam enables video capture for documentation, security and telemedicine. 387 cd/m² brightness maintains visibility in retail and outdoor-facing locations. Four USB 2.0 ports and SD card slot expand connectivity to barcode scanners, receipt printers and external sensors. Mini HDMI output (1280×720 @60Hz) feeds external signage displays if needed. Lightweight 0.8 kg form factor mounts on wall or countertop via 75×75 VESA bracket; runs continuously on PoE power budget.
Ideal for: Retail checkout counters, restaurant kiosks, clinic patient intake, hospitality check-in, government service windows and unattended information displays across Oman where single-cable installation and always-on reliability are critical.
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 10.1 inch
- Resolution
- 1280 × 800
- Display Color
- 8bit
- Brightness
- 387 cd/m²
- Backlight
- IPS
- Viewing Angle
- 160°/160° (H/V), right/left 80°/80°, up/down 80°/80°
- Surface Protection
- anti-fingerprint coating, glass thickness 1.25mm, glass hardness 6H
Touch
- Touch Technology
- Projected Capacitive Touch
- Touch Points
- 10 Points Multi Touch
System
- Operating System
- Android 13.0
- Processor
- Rockchip RK3568 Quad-core A55 × 4
- GPU
- G52 MP2
- RAM
- 4 GB
- Storage
- 32 GB
Connectivity
- HDMI Output
- HDMI Out × 1
- USB Ports
- USB 3.2 Gen1 × 1, USB 2.0 × 2, MICRO with OTG × 1
- Audio in
- Audio In × 1
- Ethernet
- Gigabit LAN (RJ45) × 1
- Wi-Fi
- Wi-Fi IEEE802.11a/b/g/n/ac
- Bluetooth
- Bluetooth 5.2
- SD card slot
- SD Card Slot × 1
Camera & audio
- Camera
- 1
- Built In Camera
- Webcam (5 megapixel)
- Speaker Type
- Built-in Speakers
- Speaker Output
- Speakers 2 × 1.5W
Physical & warranty
- Dimensions
- 255 × 172 × 30.5 mm
- Weight
- 0.8 kg
- Shipping Dimensions
- 398 × 223 × 68 mm
- Shipping Weight
- 1.36 kg
- Wall Mount
- 75 × 75 mm (VESA)
- Power Consumption
- 18 W
- Power Standby
- 0.5 W
Other
- Included Cables
- AC adapter, interchangeable plugs (EU/UK)
- Accessories
- quick start guide, safety guide, AC adapter, cable cover
