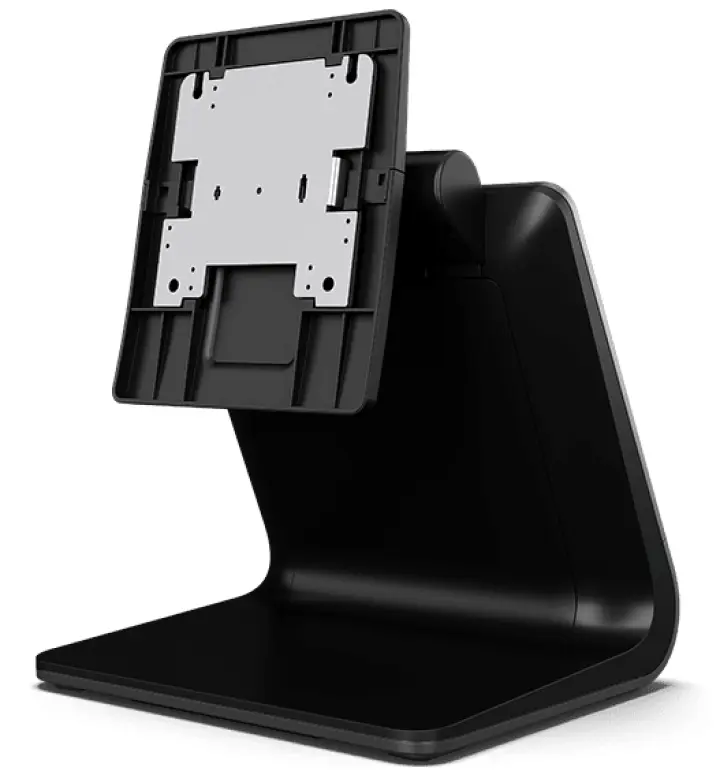

ELO Z20 POS Stand Gen 1, 10"/15" I-Series 4 (E809321)

Elo

ELO Z20 POS Stand Gen 1, 10"/15" I-Series 4

MPN E809321 SKU E809321

POS stand for 10" and 15" ELO I-Series 4 Android displays, flip hinge rated 5000 cycles, integrated USB-C hub, 2-year warranty.

Warranty
2 years standard

Pricing

Price on request in OMR

Include in your quote
WhatsApp
Written quote usually within one business day Download datasheet (PDF)

  • Written quotation in OMR

    Pricing, availability and warranty on one document.

  • Manufacturer warranty

    Terms confirmed on your quotation.

  • All 11 governorates

    Delivered from Muscat to Dhofar.

  • Quotations in Arabic & English

    Ask for Arabic, English or both.

The product, in detail.

Size and weight

Dimensions
7.6" x 10.0" x 6.7"
Weight
5.9 lbs / 2.7 kg
Shipping Dimensions
12.2" x 12.6" x 12.6"

Description

Desktop POS stand with flip design accommodating 10-inch and 15-inch I-Series 4 touchscreen displays for Android. Hinge mechanism rated for 5000 flip cycles enables frequent rotation between customer-facing and backoffice configurations. Compatible with specified ELO customer-facing display models: 1002L (E155834/E324341), 1302L (E683595/E683787), 1502L (E125496).

Integrated USB-C hub provides pre-wired connectivity for peripheral devices without additional cabling requirements. Supplied package includes 0.3m USB-C to USB-C cable, 150W power brick, North America and European power cables, VESA covers, mounting screws and installation guide. Dimensions 7.6" x 10.0" x 6.7" (H x W x D) fit compact counter or point-of-service spaces. FCC, IC, CE, VCCI and RCM certifications cover North American, European, Japanese and Australian regulatory requirements.

Ideal for: Quick-service restaurants, retail checkouts, hospitality venues and financial transaction points across Oman requiring seamless customer and staff display rotation.

  • Display compatibility: 10" and 15" I-Series 4
  • Customer-facing models: 1002L, 1302L, 1502L
  • Flip hinge rating: 5000 cycles
  • USB-C connectivity hub (pre-wired)
  • Dimensions: 7.6" x 10.0" x 6.7"
  • Weight: 2.7kg
  • Warranty: 2 years standard
  • Certifications: FCC, IC, CE, VCCI, RCM

Specifications

Manufacturer specifications · confirmed on your quotation

Physical & warranty

Dimensions
7.6" x 10.0" x 6.7"
Weight
5.9 lbs / 2.7 kg
Shipping Dimensions
12.2" x 12.6" x 12.6"
Shipping Dimension
12.8 lbs / 5.8 kg
Mounting Type
Desk / Tabletop Mount
Screen Size Support
Main Display: 10-inch and 15-inch I-Series 4 for Android; Customer Facing Display: 1002L (E155834/E324341), 1302L (E683595/E683787), 1502L (E125496)
Movement
Flip hinge, rated 5000 flips
Finishes
Dark Grey Metallic/Black
Certifications
FCC (US); IC (Canada); CE (Europe); VCCI (Japan); RCM (Australia)
Warranty
2 years standard

Other

Model
Z20 POS Stand (Gen 1) - E809321
Type
Stand
Key Features
Supports 10" or 15" I-Series 4 main display, USB-C touchscreen monitor compatibility, multiple I/O ports, pre-wired cables, VESA mounting, hinge life rating 5000 flips
Package Contents
Z20 POS Stand, 8× M4×10 flat-head screws, 2× M4×6 pan-head screws, screw-height tool, Installation Guide, 0.3m USB-C to USB-C cable, 150W power brick, North America power cable, European power cable, tie wrap, VESA covers (top/bottom 15", top/bottom 10"), base plate
