65" · 4K UHD · Android 13
Elo

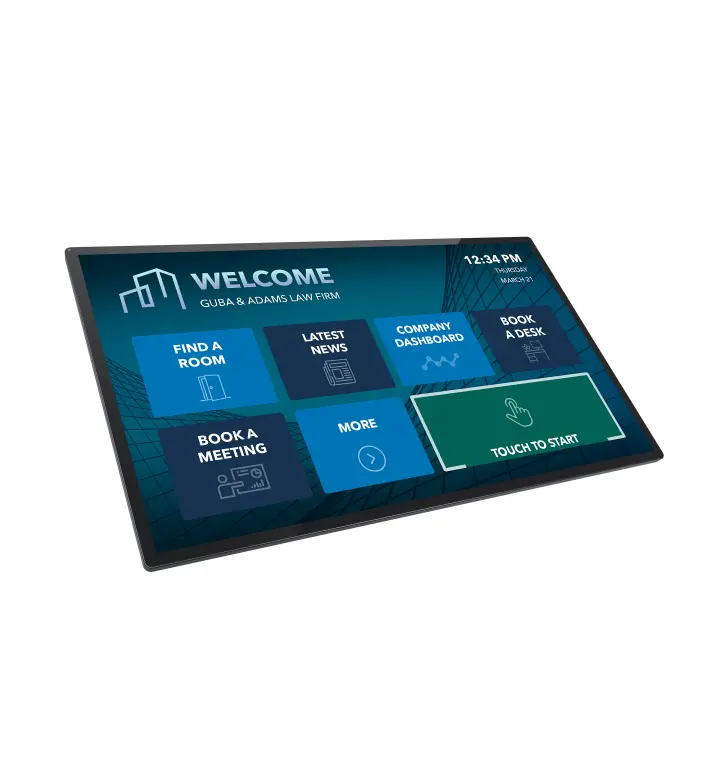

ELO 6554L 65" 4K, TouchPro PCAP, Clear Anti-Friction, 430 nits
MPN E104723
SKU E104723
65-inch 4K interactive display with 40-point PCAP touch, clear anti-friction surface, 430 nits, for high-touch collaborative environments.
- Screen size
- 65"
- Resolution
- 4K UHD
- Touch
- 40 points
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Backlight
- TFT LCD
- Screen Size
- 64.53" / 1639.062 mm diagonal
- Resolution
- 3840 × 2160 @ 60 Hz
- Display Color
- 10bit(D), 1.07 Billion colors
Touch and writing
- Touch Technology
- TouchPro PCAP
- Touch Points
- Up to 40 touches with palm rejection
- Touch Response Time
- 8 msec
Ports and connections
- HDMI Input
- 2× HDMI 2.0
- DisplayPort
- DisplayPort 1.4
- USB-C input
- USB-C (for Touch and Video)
- USB-C functions
- Touch and Video
Description
The ELO 6554L E104723 is a 65-inch 4K UHD interactive flat panel designed for intensive collaborative workflows where touch responsiveness and surface durability are critical. The 40-point TouchPro PCAP with palm rejection enables simultaneous multi-user annotation and gesture control. The clear anti-friction protective surface—unlike anti-glare coatings—minimizes finger drag and pen friction, ideal for users performing rapid stylus work or extended touch sessions.
At 430 nits with 10-bit color depth (1.07 billion colors), the display maintains color fidelity through sustained use in medium to bright office and classroom spaces. DisplayPort 1.4 and dual HDMI 2.0 inputs support both modern and legacy video equipment. Dual RJ45 Gigabit ports enable redundant network connectivity for mission-critical deployments. Built-in stereo audio (2×10W) covers room-level sound reinforcement. The 8ms touch response time preserves fluidity during rapid interaction. Optional PC module slot allows standalone or tethered operation.
Ideal for: Design studios and creative agencies in Muscat, medical imaging centers in Oman, intensive learning labs, and high-traffic corporate collaboration spaces requiring low-friction, responsive touch interaction.
- Screen: 64.53 inches (65" diagonal), 4K UHD (3840×2160@60Hz)
- Touch: 40 points, PCAP, palm rejection, <8ms response
- Surface: Clear with anti-friction coating
- Brightness: 430 nits (with PCAP overlay)
- Color: 10-bit (1.07 billion colors)
- Audio: 2×10W stereo speakers, audio out × 1
- Video In: 2×HDMI 2.0, DisplayPort 1.4, USB-C (touch & video)
- Network: 2×RJ45 Gigabit Ethernet
- Power: ON 160W, SLEEP 2.3W, OFF 0.28W
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 64.53" / 1639.062 mm diagonal
- Resolution
- 3840 × 2160 @ 60 Hz
- Display Color
- 10bit(D), 1.07 Billion colors
- Brightness
- LCD Panel 500 nits; with PCAP 430 nits
- Backlight
- TFT LCD
- Refresh Rate
- 60 Hz
- Viewing Angle
- Horizontal: ±89°/178° total; Vertical: ±89°/178° total
- Ambient Light Sensor
- Yes
- Surface Protection
- TouchPro PCAP - Clear with Anti-Friction
Touch
- Touch Technology
- TouchPro PCAP
- Touch Points
- Up to 40 touches with palm rejection
- Touch Response Time
- 8 msec
- Palm Rejection
- Yes
System
- Sensors
- Ambient Light Sensor
Connectivity
- HDMI Input
- 2× HDMI 2.0
- DisplayPort
- DisplayPort 1.4
- USB-C input
- USB-C (for Touch and Video)
- USB-C functions
- Touch and Video
- USB Ports
- USB 2.0 × 1; USB-A × 1
- Audio out
- Audio Out × 1
- Ethernet
- RJ45 × 2
- Serial Port
- RS232 × 1
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 10 W stereo speakers
Physical & warranty
- Dimensions
- 58.69" x 34.07" x 3.35" / 1490.6 mm x 865.5 mm x 85.1 mm
- Weight
- Unpackaged: 111.14 lbs / 50 kg; Packaged: 131.04 lbs / 60 kg
- Shipping Dimensions
- 68.9" x 45.28" x 11.02" / 1750 mm x 1150 mm x 280 mm
- Wall Mount
- VESA 600×600mm M8
- Power Consumption
- ON: 160 W, SLEEP: 2.3 W, OFF: 0.28 W
- Power Standby
- ≤ 2 W
- Operating Temperature
- 0°C to 40°C (Portrait/Landscape/Tilt ≤15°)
- Operating Humidity
- Operating: 20% - 80%; Storage: 10% - 95%
- Warranty
- 3 years standard with AUR included
Other
- Included Cables
- Power cables, USB Type-C cable, AC out power cable
- Accessories
- Quick Install Guide, Energy label, EU EEI, UK EEI, M4×6mm screws
