65" · 4K UHD · Android 13
Elo

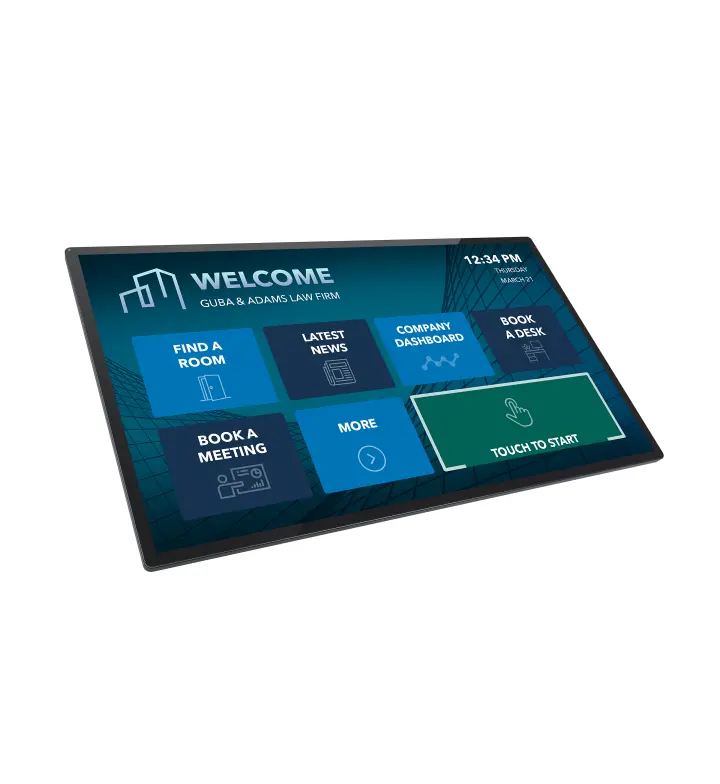

ELO 6554L 65" 4K, TouchPro PCAP, Anti-Glare, 430 nits, 40-touch
MPN E104912
SKU E104912
65-inch 4K interactive display with 40-point PCAP touch, anti-glare, 430 nits brightness, palm rejection for collaborative workspaces.
- Screen size
- 65"
- Resolution
- 4K UHD
- Touch
- 40 points
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Backlight
- TFT LCD
- Screen Size
- 64.53" / 1639.062 mm diagonal
- Resolution
- 3840 × 2160 @ 60 Hz
- Display Color
- 10bit(D), 1.07 Billion colors
Touch and writing
- Touch Technology
- TouchPro PCAP
- Touch Points
- Up to 40 touches with palm rejection
- Touch Response Time
- 8 msec
Ports and connections
- HDMI Input
- 2× HDMI 2.0
- DisplayPort
- DisplayPort 1.4
- USB-C input
- USB-C (for Touch and Video)
- USB-C functions
- Touch and Video
Description
The ELO 6554L E104912 is a 65-inch 4K UHD interactive flat panel featuring TouchPro PCAP technology, delivering superior touch responsiveness compared to infrared solutions. The 40-point capacitive touch system with palm rejection enables natural multi-user collaboration in boardrooms and educational settings across Oman. Rated at 430 nits with TFT LCD backlighting and 10-bit color depth for vivid, sustained image quality during extended presentations and instruction.
DisplayPort 1.4 and dual HDMI 2.0 inputs accommodate both new and legacy video sources. USB-C handles unified touch and video delivery, simplifying cable management in cable-restricted installations. The anti-glare protective glass reduces reflections and eye strain during long working sessions. Built-in stereo audio (2×10W) covers room-scale sound for moderate-sized meetings. Dual network options (RJ45 Gigabit connection) enable integration with institutional management and content distribution systems. The 8ms touch response time maintains fluidity across rapid annotation and gesture control workflows.
Ideal for: Corporate boardrooms and training centers in Muscat, university classrooms and collaborative labs in Oman, and professional design studios requiring responsive touch feedback.
- Screen: 64.53 inches (65" diagonal), 4K UHD (3840×2160@60Hz)
- Touch: 40 points, PCAP, palm rejection, 8ms response
- Brightness: 430 nits (with PCAP) from 500 nits panel
- Color: 10-bit (1.07 billion colors)
- Audio: 2×10W stereo speakers, audio out × 1
- Video In: 2×HDMI 2.0, DisplayPort 1.4, USB-C (touch & video)
- Network: RJ45 × 1, Ethernet Gigabit
- Power: ON 160W, SLEEP 2.3W, OFF 0.28W
- Warranty: 3 years standard with AUR included
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 64.53" / 1639.062 mm diagonal
- Resolution
- 3840 × 2160 @ 60 Hz
- Display Color
- 10bit(D), 1.07 Billion colors
- Brightness
- LCD Panel 500 nits; with PCAP 430 nits
- Backlight
- TFT LCD
- Refresh Rate
- 60 Hz
- Viewing Angle
- Horizontal: ±89°/178° total; Vertical: ±89°/178° total
- Ambient Light Sensor
- Yes
- Surface Protection
- TouchPro PCAP - Anti-Glare
Touch
- Touch Technology
- TouchPro PCAP
- Touch Points
- Up to 40 touches with palm rejection
- Touch Response Time
- 8 msec
- Palm Rejection
- Yes
System
- Sensors
- Ambient Light Sensor
Connectivity
- HDMI Input
- 2× HDMI 2.0
- DisplayPort
- DisplayPort 1.4
- USB-C input
- USB-C (for Touch and Video)
- USB-C functions
- Touch and Video
- USB Ports
- USB 2.0 × 1, USB-A × 1 (for Wi-Fi dongle only)
- Audio out
- Audio Out × 1
- Ethernet
- RJ45 × 1
- Serial Port
- RS232 × 1
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 10 W stereo speakers
Physical & warranty
- Dimensions
- 58.69" x 34.07" x 3.35" / 1490.6 mm x 865.5 mm x 85.1 mm
- Weight
- Unpackaged: 111.14 lbs / 50 kg; Packaged: 131.04 lbs / 60 kg
- Shipping Dimensions
- 68.9" x 45.28" x 11.02" / 1750 mm x 1150 mm x 280 mm
- Wall Mount
- VESA 600×600mm M8
- Power Consumption
- ON: 160 W, SLEEP: 2.3 W, OFF: 0.28 W
- Power Standby
- 0.7 W
- Operating Temperature
- 0°C to 40°C (Portrait/Landscape/Tilt ≤15°)
- Operating Humidity
- Operating: 20% - 80%; Storage: 10% - 95%
- Warranty
- 3 years standard with AUR included
Other
- Included Cables
- Power cables (IEC 60320-C13 to NA/EU/KR/UK plug), AC (out) Power cable, IEC 60320-C14 to IEC 60320-C5 (0.3m), USB cable (Type-C to Type-C)
- Accessories
- Quick Install Guide, Energy label, 1× EU EEI, 2× UK EEI, 4× M4×6mm flat head screws
