65" · 4K UHD · Android 13
Elo

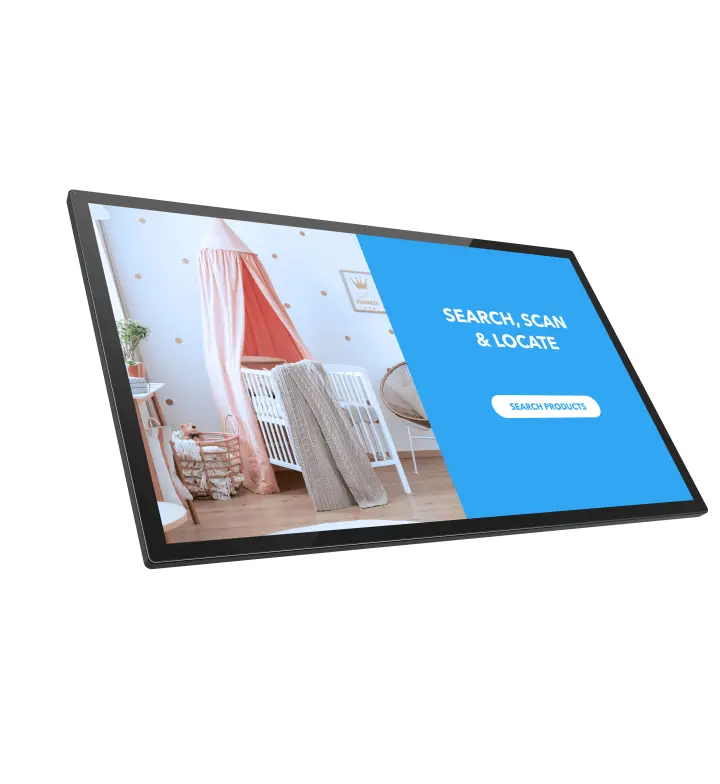

ELO 5554L 55" 4K Infrared Anti-Glare Display
MPN E104520
SKU E104520
55-inch 4K interactive display with infrared touch anti-glare surface, 450 nits brightness, 20-point touch, USB-C connectivity, 3-year warranty.
- Screen size
- 55"
- Resolution
- 4K UHD
- Touch
- 20 points
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Backlight
- TFT LCD
- Screen Size
- 54.64" / 1387.78 mm diagonal
- Resolution
- 3840 × 2160 @ 60 Hz
- Display Color
- 10bit(D), 1.07 Billion colors
Touch and writing
- Touch Technology
- Infrared (IR)
- Touch Points
- Up to 20 touches
- Touch Response Time
- 8 msec
Ports and connections
- HDMI Input
- 2× HDMI 2.0
- DisplayPort
- DisplayPort 1.4
- USB-C input
- USB-C (for Touch and Video)
- USB Ports
- Micro USB 2.0 × 4, USB-A × 1
Description
ELO 5554L 55" combines 4K UHD resolution with Infrared (IR) multi-touch technology and anti-glare surface protection for interactive displays in classrooms, offices, and hospitality settings. 450-nits brightness with ambient light sensor delivers legible content in varied indoor lighting conditions. 20-point infrared touch with 8msec response time and ±1mm accuracy supports responsive user interaction and gesture input.
TFT LCD backlight with 178° horizontal and vertical viewing angles ensures consistent image quality from multiple positions. DisplayPort 1.4 and dual HDMI 2.0 inputs accommodate flexible source device connectivity. USB-C (for touch and video) simplifies connection of modern devices and supports daisy-chaining. Built-in stereo speakers (2 × 10W) provide adequate audio without external amplification. Palm rejection support ensures accurate touch recognition during extended note-taking or annotation sessions. Operating temperature 0°C to 40°C covers standard indoor and climate-controlled facilities. Includes power cables and USB cable; 3-year standard warranty with advanced hardware replacement.
Ideal for: Educational institutions, corporate training rooms, interactive meeting spaces, and healthcare facilities across Oman requiring mid-sized interactive displays with high-brightness anti-glare surfaces and modern USB-C connectivity.
- Screen: 55" diagonal, 4K (3840×2160) at 60Hz, TFT LCD backlight, 450 nits brightness, anti-glare surface, 178° viewing angles
- Touch: Infrared (IR) multi-touch, 20-point capacity, ±1mm accuracy, 8msec response, palm rejection enabled
- Display connectivity: DisplayPort 1.4, HDMI 2.0 ×2, USB-C (touch and video), RS232 serial, RJ45 LAN
- Audio: 2 × 10W stereo speakers, audio out ×1, microphone support via serial interface
- Power & Control: 110.72W active, 2.3W sleep, 0.28W off; VESA mount 400×400mm or 600×600mm; 3-year warranty
- Operating range: 0°C to 40°C; storage 10% to 95% humidity; includes power and USB cables, wall mount hardware
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 54.64" / 1387.78 mm diagonal
- Resolution
- 3840 × 2160 @ 60 Hz
- Display Color
- 10bit(D), 1.07 Billion colors
- Brightness
- LCD Panel 500 nits; with IR 450 nits
- Backlight
- TFT LCD
- Refresh Rate
- 60 Hz
- Viewing Angle
- Horizontal: ±89°/178° total; Vertical: ±89°/178° total
- Ambient Light Sensor
- Yes
- Surface Protection
- Infrared (IR) - Anti-Glare
Touch
- Touch Technology
- Infrared (IR)
- Touch Points
- Up to 20 touches
- Touch Response Time
- 8 msec
- Palm Rejection
- Yes
System
- Sensors
- Ambient Light Sensor
Connectivity
- HDMI Input
- 2× HDMI 2.0
- DisplayPort
- DisplayPort 1.4
- USB-C input
- USB-C (for Touch and Video)
- USB Ports
- Micro USB 2.0 × 4, USB-A × 1
- Audio out
- Audio Out × 1
- Ethernet
- RJ45 × 1
- Serial Port
- RS232 × 1
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 10 W stereo speakers
Physical & warranty
- Dimensions
- 50.07" x 29.24" x 2.76" / 1271.8 mm x 742.6 mm x 70.0 mm
- Weight
- Unpackaged: 80.6 lbs / 30.15 kg; Packaged: 101.9 lbs / 38.62 kg
- Shipping Dimensions
- 57.48" x 40.94" x 8.86" / 1460 mm x 1040 mm x 225 mm
- Wall Mount
- VESA 400×400mm M6; 600×600mm M8
- Power Consumption
- IR - ON: 110.72 W, SLEEP: 2.3 W, OFF: 0.28 W
- Power Standby
- ≤ 0.5 W
- Operating Temperature
- 0°C to 40°C (Portrait/Landscape/Tilt ≤15°)
- Operating Humidity
- Operating: 20% - 80%; Storage: 10% - 95%
- Warranty
- 3 years standard with AUR included
Other
- Included Cables
- Power cables, USB cable (Type-C to Type-C), AC (out) Power cable
- Accessories
- Quick Install Guide, Energy label, EU EEI, UK EEI, M4×6mm flat head screws
