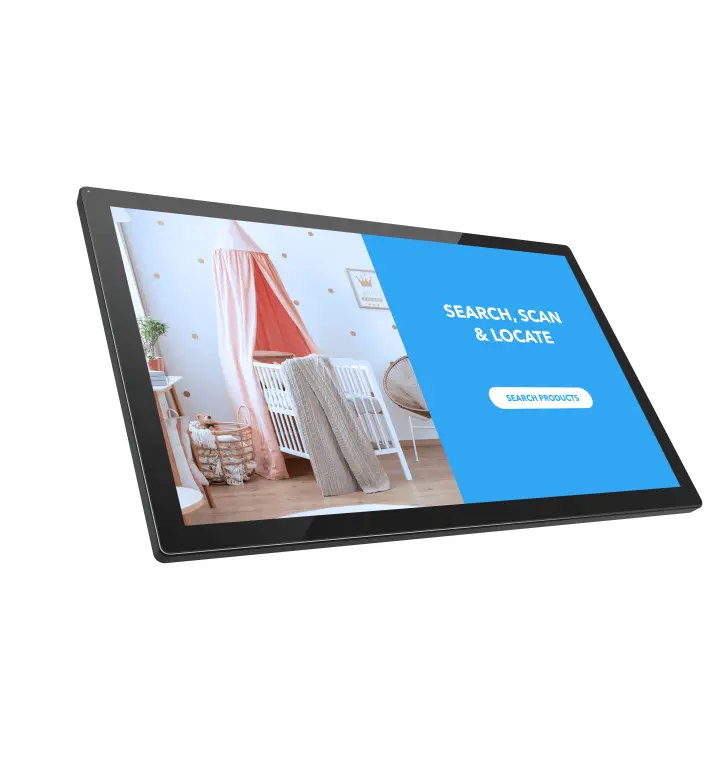

ELO 3204L 32" Full HD Interactive Display, 40-point Touch
MPN E103164
SKU E103164
32-inch Full HD interactive display with 40-point touchscreen for kiosks, small meeting spaces, and departmental collaboration in Oman offices and schools.
- Screen size
- 32"
- Resolution
- Full HD
- Touch
- 40 points
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Backlight
- TFT LCD
- Screen Size
- 31.5" / 800.1 mm diagonal
- Resolution
- 1920 × 1080 @ 60Hz
- Display Color
- 16.7 million, 8bit(D)
Touch and writing
- Touch Technology
- TouchPro® PCAP
- Touch Points
- Up to 40 touches with palm rejection
- Touch Response Time
- 8 msec (typical)
Ports and connections
- HDMI Input
- 2× HDMI 1.4
- DisplayPort
- DP 1.2 × 1
- USB-C input
- USB-C (for Touch and Video)
- USB Ports
- Micro USB 2.0 × 4, USB-A × 1
Description
The ELO 3204L is a compact 32-inch Full HD interactive flat panel with 1920 × 1080 resolution. Its 40-point capacitive touchscreen with palm rejection delivers 8-millisecond response time, ideal for interactive departmental use, small-group collaboration, and digital information kiosks where space is limited.
The clear anti-friction surface provides durable interactive capability without fingerprints. Brightness reaches 320 nits with PCAP overlay, sufficient for most office environments. USB-C carries both touch and video data simultaneously. Dual HDMI 1.4 and DisplayPort 1.2 offer connection flexibility. Built-in 5W stereo speakers support audio for kiosk prompts and meeting sound. Dual Ethernet ports enable network connectivity. Power consumption of 45W reflects efficient operation for extended daily use.
Ideal for: information kiosks in government offices, small training rooms, departmental meeting spaces, retail counters, and compact collaborative environments throughout Oman.
- 32-inch diagonal, 1920 × 1080 Full HD
- 40-point touch with anti-friction surface
- 320 nits brightness (LCD: 400 nits)
- 8ms response time with palm rejection
- USB-C, dual HDMI 1.4, DisplayPort 1.2
- Dual RJ45 Ethernet for network integration
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 31.5" / 800.1 mm diagonal
- Resolution
- 1920 × 1080 @ 60Hz
- Display Color
- 16.7 million, 8bit(D)
- Brightness
- LCD Panel 400 nits; with PCAP 320 nits
- Backlight
- TFT LCD
- Refresh Rate
- 60 Hz
- Viewing Angle
- Horizontal: ±89°/178° total; Vertical: ±89°/178° total
- Ambient Light Sensor
- Yes
- Surface Protection
- Clear with Anti-Friction
Touch
- Touch Technology
- TouchPro® PCAP
- Touch Points
- Up to 40 touches with palm rejection
- Touch Response Time
- 8 msec (typical)
- Palm Rejection
- Yes
System
- Sensors
- Ambient Light Sensor
Connectivity
- HDMI Input
- 2× HDMI 1.4
- DisplayPort
- DP 1.2 × 1
- USB-C input
- USB-C (for Touch and Video)
- USB Ports
- Micro USB 2.0 × 4, USB-A × 1
- Audio out
- 3.5mm Audio Headphones out
- Ethernet
- RJ45 × 2
- Serial Port
- 3.5mm TRS jack (for RS232/MDC)
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 5 W stereo speakers
Physical & warranty
- Dimensions
- 30.07" x 18.04" x 1.95" / 763.7 mm x 458.1 mm x 49.6 mm
- Weight
- Unpackaged: 26.17 lbs / 10.9 kg
- Shipping Dimensions
- 35.62" x 26.77" x 6.30" / 905 mm x 680 mm x 160 mm
- Wall Mount
- VESA 400 × 400mm, M6
- Power Consumption
- ON: 45 W, SLEEP: 2.3 W, OFF: 0.29 W
- Power Standby
- ≤ 1.43 W
- Operating Temperature
- 0°C to 40°C (Portrait/Landscape/Tilt); 0°C to 35°C (Tabletop)
- Operating Humidity
- 20% - 80% operating; 10% - 95% storage
- Warranty
- 3 years standard with AUR included
Other
- MPN
- 3204L
- Included Cables
- Power cables (IEC 60320-C13 to NA plug, IEC 60320-C13 to EU/KR plug, IEC 60320-C13 to UK plug), AC (out) Power cable, IEC 60320-C14 to IEC 60320-C5 (0.3m), USB cable (Type-C to Type-C)
- Accessories
- Quick Install Guide, Energy label, 1× EU EEI, 2× UK EEI, 4× M4×6mm flat head screws
