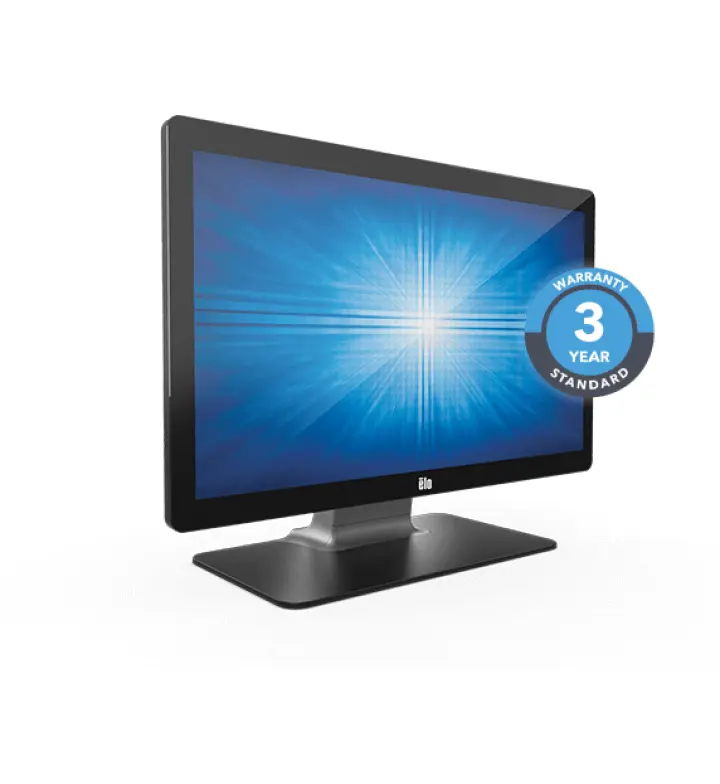

Elo 2402L 23.8" Touch Monitor, 1920 × 1080 TouchPro PCAP
MPN E351806
SKU E351806
2402L 23.8" commercial touchscreen with 10-point TouchPro PCAP, 1920 × 1080 resolution and dual 2W speakers. Supplied with stand, with clear glass and a 3-year warranty.
- Screen size
- 23.8"
- Resolution
- Full HD
- Touch
- 10 points
- Warranty
- 3 years
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Resolution
- 1920 × 1080
- Screen Size
- 23.8" / 604.52 mm
- Display Color
- 16.7M
- Brightness
- Panel: 250 nits; with TouchPro PCAP: 225 nits
Touch and writing
- Touch Technology
- TouchPro PCAP
- Touch Points
- 10 Touches
- Touch Response Time
- 16 msec
Audio
- Speaker Output
- 2 × 2W
- Speaker Type
- 2 × 2W internal speakers
Description
The Elo 2402L is a 23.8" commercial touchscreen monitor running at 1920 × 1080 on an active matrix TFT LCD. TouchPro projected-capacitive technology gives edge-to-edge glass and up to 10 simultaneous touches, with a 16 msec response time. The panel is rated at 250 nits, measuring 225 nits through the TouchPro layer, and this unit is the with-stand configuration with clear glass. Viewing angles reach 89°/89° horizontally and vertically, or 178° total on each axis.
Two 2W speakers are built in, and video arrives over VGA or HDMI with both cables supplied. A USB 2.0 Type A port and four Micro USB side ports on the top, bottom, left and right edges accept Elo Edge Connect accessories, and a VESA 4-hole 100 mm pattern handles wall, pole or tabletop mounting. Elo lists MSR, barcode scanner, fingerprint reader, NFC and a customer-facing display as optional Edge Connect peripherals for this model; none of them ships with the monitor and each is ordered separately. The monitor carries a three-year standard warranty.
Ideal for: counter-top self-order and check-in stations in restaurants, clinics and government service halls. Request a quote for retail, ticketing or self-service projects in Muscat and across Oman.
- 23.8" / 604.52 mm panel, 1920 × 1080, 16.7M colours
- TouchPro PCAP, 10 touches, 16 msec response
- 250 nits panel, 225 nits through the TouchPro layer
- VGA and HDMI in, USB Type B, USB 2.0 Type A, 4 × Micro USB, Touch-USB × 1
- VESA 4-hole 100 mm mount, 9.80 kg with stand, 3-year warranty
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 23.8" / 604.52 mm
- Resolution
- 1920 × 1080
- Display Color
- 16.7M
- Brightness
- Panel: 250 nits; with TouchPro PCAP: 225 nits
- Backlight
- Active matrix TFT LCD
- Viewing Angle
- Horizontal: 89°/89° or 178° total; Vertical: 89°/89° or 178° total
Touch
- Touch Technology
- TouchPro PCAP
- Touch Points
- 10 Touches
- Touch Response Time
- 16 msec
Connectivity
- HDMI Input
- HDMI (HDMI cable included)
- VGA input
- VGA (VGA DE-15 (DB-15) Male connecter cable included)
- USB Ports
- USB Type B, USB 2.0 Type A, 4 x Micro USB
- Touch USB ports
- Touch-USB × 1
- Audio in
- Combo Jack
Camera & audio
- Speaker Type
- 2 × 2W internal speakers
- Speaker Output
- 2 × 2W
Physical & warranty
- Dimensions
- With Stand: 17.04" x 22.62" x 9.17" / 432.9 mm x 574.6 mm x 233 mm; Without Stand: 13.94" x 22.62" x 1.69" / 354.1 mm x 574.6 mm x 42.8 mm
- Weight
- With Stand: 21.58 lbs / 9.80 kg; Without Stand: 14.73 lbs / 6.69 kg
- Shipping Dimensions
- With Stand: 20.71" x 26.77" x 12.52" / 526 mm x 680 mm x 318 mm; Without Stand: 18.11" x 26.77" x 6.65" / 460 mm x 680 mm x 169 mm
- Wall Mount
- VESA 4-hole 100mm mounting interface on rear of unit
- Power Consumption
- ON (Default - 75% Brightness): 14.33 W; ON (Typical - 100% Brightness): 16.81 W
- Power Standby
- SLEEP: 0.974 W; OFF: 0.279 W
- Operating Temperature
- Operating: 0° C to 40° C / Storage: -20° C to 60° C
- Operating Humidity
- Operating: 20% - 80% / Storage: 10% - 95% (38.7° maximum wet bulb temperature)
- Warranty
- 3 years
Other
- Included Cables
- 3 x Tie wraps, VGA cable, HDMI cable, Touch USB cable, Audio cable, Power brick, NA Power cable, EU Power cable, EEI Label
