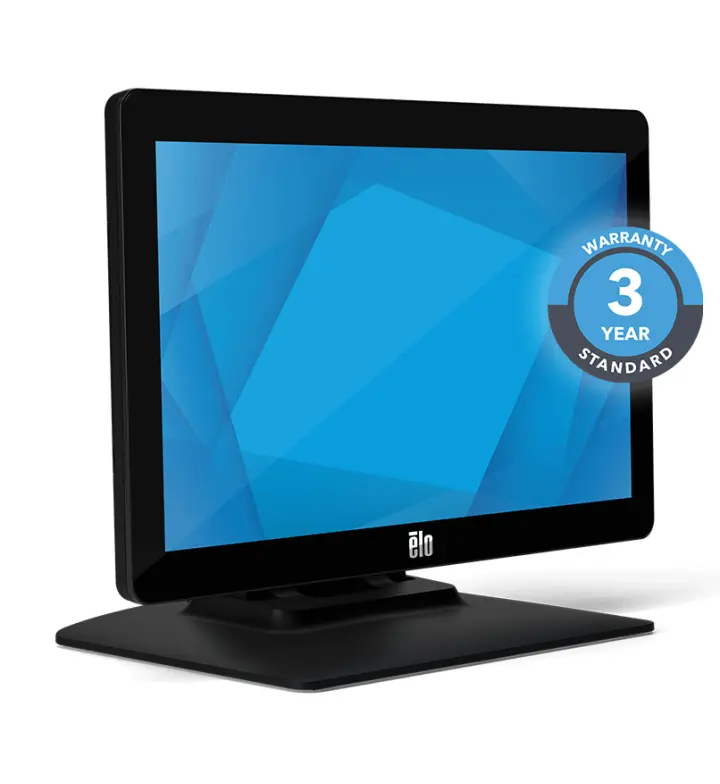

ELO 1502L 15.6" Touchscreen Monitor, HD 1366×768, PCAP
MPN E318746
SKU E318746
15.6-inch HD touchscreen with 1366×768 native resolution, 10-point PCAP, optional stand, and USB Type-C multifunction port for versatile POS and kiosk deployment.
- Screen size
- 15.6"
- Resolution
- Full HD
- Touch
- 10 points
- Warranty
- 3 years standard
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Display Color
- 16.7M
- Screen Size
- 15.6" / 419.1 mm
- Resolution
- HD: 1366 × 768 (native)
- Brightness
- HD: Panel: 220 nits; PCAP + DC power: 198 nits
Touch and writing
- Touch Technology
- TouchPro PCAP
- Touch Points
- 10-touch
- Touch Response Time
- HD: 10 ms
Audio
- Speaker Output
- 2 × 2W
- Speaker Type
- 2 × 2W internal speakers
Description
The ELO 1502L is a 15.6-inch portable touchscreen monitor offering flexible deployment with both stand and no-stand configurations. Native HD resolution of 1366×768 at 60Hz combined with 10-point TouchPro PCAP technology delivers 10ms response time on anti-glare glass. Built-in 2×2W speakers provide audio output for multimedia and alert functions. The USB Type-C port delivers simultaneous touch, video, and power connectivity, enabling single-cable deployment scenarios.
Display brightness reaches 220 nits in native HD mode and 198 nits with PCAP and DC power enabled. Connectivity options include mini-VGA analog input, HDMI, USB Type-B, 3×Micro-USB ports, and audio input for flexible integration. The system operates reliably across 0°C to 40°C storage range with low 0.2W power-off consumpti...
Ideal for: Point-of-sale terminals, retail kiosks, self-service displays, portable workstations, and B2B procurement across Oman requiring compact HD touchscreens with flexible mounting and single-cable power deployment.
- 15.6-inch native HD 1366×768 display with 220 nits brightness and anti-glare glass
- 10-point TouchPro PCAP with 10ms response; ±45° horizontal and vertical viewing angle
- USB Type-C with simultaneous touch, video, and power; mini-VGA and HDMI inputs; 2×2W speakers
- USB Type-B, 3×Micro-USB ports; audio input; 0°C to 40°C; VESA 75mm and 100mm mounts
- Available with or without stand; included cables: HDMI, power brick, USB, mini-VGA adapter; 3-year warranty
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 15.6" / 419.1 mm
- Resolution
- HD: 1366 × 768 (native)
- Display Color
- 16.7M
- Brightness
- HD: Panel: 220 nits; PCAP + DC power: 198 nits
- Backlight
- Active matrix TFT LCD
- Refresh Rate
- 60 Hz
- Viewing Angle
- HD: Horizontal: ±45° / 90° total; Vertical: -35°/+15° / 50° total
- Surface Protection
- Anti-Glare Smooth Glass
Touch
- Touch Technology
- TouchPro PCAP
- Touch Points
- 10-touch
- Touch Response Time
- HD: 10 ms
Connectivity
- HDMI Input
- HD: HDMI
- VGA input
- HD: Analog VGA (Mini-VGA female connecter)
- USB-C input
- USB Type-C × 1
- USB-C functions
- Supports touch, video and power connectivity
- USB Ports
- HD: USB Type-B, 3× Micro-USB ports (Top, Left, Right)
- Touch USB ports
- Micro-USB × 3
- Audio in
- HD: Audio jack (Line-in)
Camera & audio
- Speaker Type
- 2 × 2W internal speakers
- Speaker Output
- 2 × 2W
Physical & warranty
- Dimensions
- With Stand: 11.21" x 15.23" x 7.84" / 284.65 mm x 386.96 mm x 199.12 mm; Without Stand: 9.62" x 15.23" x 1.28" / 244.39 mm x 386.96 mm x 32.4 mm
- Weight
- Unpackaged: With Stand: 6.72 lbs / 3.05 kg; Without Stand: 3.62 lbs / 1.64 kg
- Shipping Dimensions
- With Stand: 8.03" x 17.76" x 13.54" / 204 mm x 451 mm x 344 mm; Without Stand: 6.89" x 17.76" x 12.60" / 175 mm x 451 mm x 320 mm
- Wall Mount
- VESA 4-hole 75mm and 100mm mounting interface on rear of unit
- Power Consumption
- HD: monitor + AC/DC adapter: ON: 10.2W
- Power Standby
- HD: SLEEP: 0.4W; OFF: 0.2W
- Operating Temperature
- Operating: 0 °C to 40 °C /32 °F to 104 °F; Storage: -20 °C to 60 °C /-4 °F to 140 °F
- Operating Humidity
- Operating: 20%-80%; Storage: 10%-95% (38.7° max wet bulb temperature)
- Warranty
- 3 years standard
Other
- Included Cables
- HD: Touchmonitor, Quick Install Guide, HDMI cable, Power brick, 2× cable clamps, 2× tie wraps, Mini-VGA to VGA cable, USB cable (USB Type A plug to USB Type B plug), Audio cable, EEI Label
