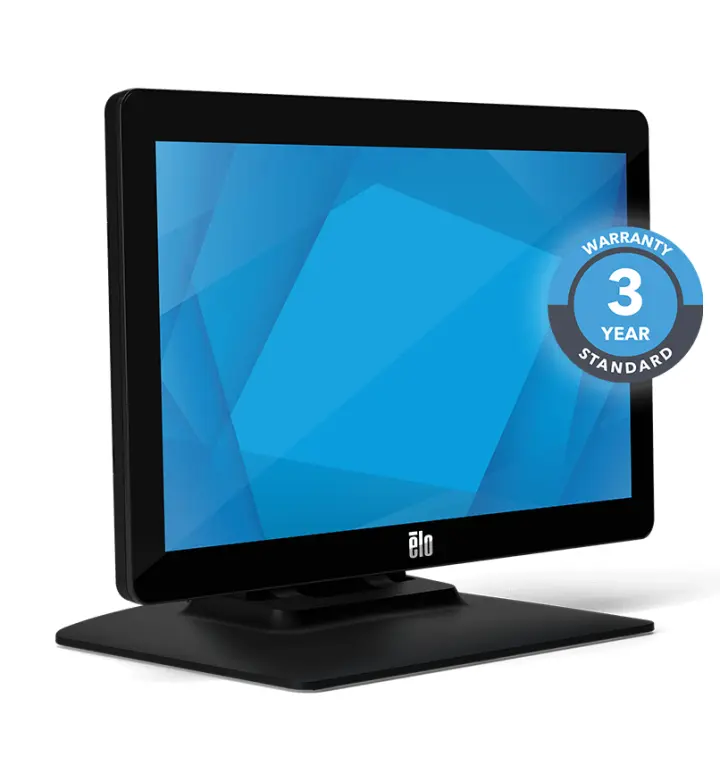

Elo 1502L 15.6" FHD PCAP 10-Touch Monitor
MPN E155645
SKU E155645
Elo 1502L 15.6-inch portable FHD touch monitor, 1920×1080, 10-point PCAP, 225-nit USB-C powered display. For mobile POS and field applications.
- Screen size
- 15.6"
- Resolution
- Full HD
- Touch
- 10 points
- Warranty
- 3 years standard
Pricing
Price on request in OMR
Written quote usually within one business day
Download datasheet (PDF)
-
Written quotation in OMR
Pricing, availability and warranty on one document.
-
Manufacturer warranty
Terms confirmed on your quotation.
-
All 11 governorates
Delivered from Muscat to Dhofar.
-
Quotations in Arabic & English
Ask for Arabic, English or both.
The product, in detail.
Screen and picture
- Display Color
- 16.7M
- Screen Size
- 15.6" / 419.1 mm
- Resolution
- FHD: 1920 × 1080
- Backlight
- N/A (Active matrix TFT LCD)
Touch and writing
- Touch Technology
- TouchPro PCAP
- Touch Points
- 10-touch
Ports and connections
- HDMI Input
- HDMI × 1
- VGA input
- Analog VGA (Micro-HDMI female connector)
- USB-C input
- USB Type-C (support DP Alt mode)
- USB-C functions
- Supports touch, video and power connectivity
Description
The Elo 1502L is a 15.6-inch compact FHD touch monitor with 1920×1080 resolution and 10-point PCAP touchscreen. At 225 nits brightness with PCAP and 250 nits panel-only, it delivers clear visuals for small-footprint retail, kiosk, and mobile applications. Weighs just 3.05 kg with stand, enabling transport between locations or portable cart mounting. Anti-glare glass with smooth finish reduces reflections in varied lighting.
USB Type-C provides touch, video, and power delivery from a single connection—eliminate separate power bricks on mobile setups. Micro-USB ports on three sides (top, left, right) offer flexible cable routing in compact spaces. Three-year warranty covers materials and workmanship. Operating temperature 0°C to 40°C matches Oman's climate. Sleep mode draws only 1.87W; OFF mode 0.2W for extended battery runtime on portable systems.
Ideal for: Mobile POS carts, portable kiosk systems, field service check-in, survey and polling stations, trade show displays, temporary event registration, and compact retail counters.
- Display: 15.6" FHD, 1920×1080, 16.7M colors, optically bonded
- Touch: 10-point PCAP, responsive multi-touch input
- Brightness: 225 nits (PCAP+DC), 180 nits (PCAP+USB-C), 250 nits (panel only)
- Connectivity: USB-C (touch/video/power), micro-USB (3 ports), HDMI, audio in
- Power: 9.5W on-mode, 1.87W sleep, 0.2W off
- Viewing angle: 160° (H and V)
- Weight: 3.05 kg with stand, portable form factor
- Warranty: 3 years standard
Specifications
Manufacturer specifications · confirmed on your quotation
Display
- Screen Size
- 15.6" / 419.1 mm
- Resolution
- FHD: 1920 × 1080
- Display Color
- 16.7M
- Brightness
- FHD Panel: 250 nits; PCAP + DC power: 225 nits; PCAP + USB-C 5V power: 180 nits
- Backlight
- N/A (Active matrix TFT LCD)
- Refresh Rate
- 60 Hz
- Viewing Angle
- FHD Horizontal: +/-80° / 160° total; Vertical: +/-80° / 160° total
- Surface Protection
- Anti-Glare Smooth Glass
Touch
- Touch Technology
- TouchPro PCAP
- Touch Points
- 10-touch
Connectivity
- HDMI Input
- HDMI × 1
- VGA input
- Analog VGA (Micro-HDMI female connector)
- USB-C input
- USB Type-C (support DP Alt mode)
- USB-C functions
- Supports touch, video and power connectivity
- USB Ports
- 3× Micro-USB ports (Top, Left, Right)
- Touch USB ports
- Micro-USB × 3
- Audio in
- Audio In × 1
Camera & audio
- Speaker Type
- Built-in Speakers
- Speaker Output
- 2 × 2W internal speakers
Physical & warranty
- Dimensions
- With Stand: 11.21" x 15.23" x 7.84" / 284.65 mm x 386.96 mm x 199.12 mm
- Weight
- Unpackaged With Stand: 6.72 lbs / 3.05 kg
- Shipping Dimensions
- With Stand: 8.03" x 17.76" x 13.54" / 204 mm x 451 mm x 344 mm
- Wall Mount
- VESA 4-hole 75mm and 100mm mounting interface on rear of unit
- Power Consumption
- FHD monitor + AC/DC adapter: ON: 9.5W; SLEEP: 1.87W; OFF: 0.2W
- Power Standby
- 0.2 W
- Operating Temperature
- Operating: 0°C to 40°C / 32°F to 104°F; Storage: -20°C to 60°C / -4°F to 140°F
- Operating Humidity
- Operating: 20%-80%; Storage: 10%-95% (38.7° max wet bulb temperature)
- Warranty
- 3 years standard
Other
- Included Cables
- HDMI cable, Power brick, USB Cable (USB Type-A to Type-C), NA Power cable, EU Power cable
